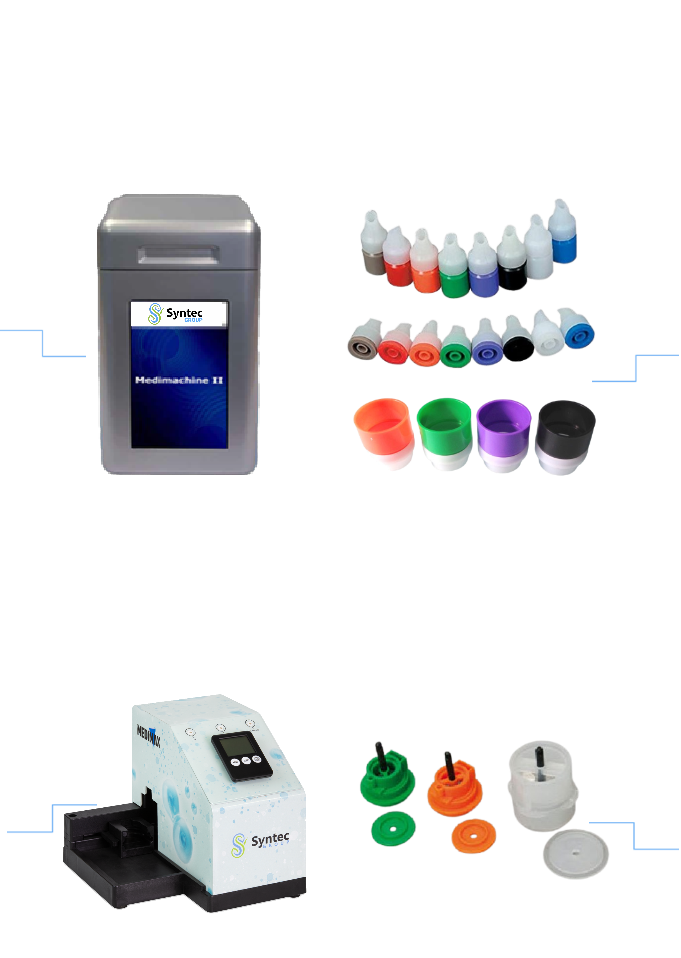

Medimachine II & Medimax 2.0

Step Zero In Sample Preparation of Solid Tissue for Single Cell suspension in Flow Cytometry

Standardization and Increased Efficiency in Sample Preparation for

Cytometry

Medimachine II is designed to provide both gentle tissue dissociation and fine homogenization.
MediMax 2.0 is an automated mechanical device designed to run all kind of Medicons.
Filcons & Filcons Max are Filters for Efficient Cell/Nuclei Separation – in Standard & High-Capacity Formats.
Medicons & Medicons Max are sisposable Mechanical Disaggregator for solid Tissue preparation.

Medimachine II

  • Automated Operation: Fully automated for precise, consistent performance, reducing the need for manual intervention.
  • Advanced Calibration: Features self-calibrating mechanisms for accurate and reliable results with minimal setup.
  • High Throughput: Capable of processing large volumes, enhancing efficiency in medical or laboratory environments.
  • Customizable Settings: Allows users to adjust parameters for specific applications, providing flexibility in use.

MediMax 2.0

  • High-Resolution Imaging: High-Resolution Imaging:
  • Real-Time Analysis: Provides instant data processing and visual output, enabling quick decision-making.
  • Multi-Functionality: Supports a range of medical applications, from diagnostics to monitoring, in a single compact unit.
  • Data Integration: Easily connects with hospital systems and electronic medical records for efficient data sharing.

Filcons & Filcons Max

  • Disposable: Designed for single-use to prevent cross-contamination.
  • Sterile: Supplied in sterile packaging to ensure safety.
  • Non-Sterile: Available for procedures where the user can sterilize them before use.
  • Specialized Design: Tailored for specific applications, such as ocular or dental use.
  • Intended Use: Primarily used for medical procedures requiring precise control, like ocular applications.

Medicons & Medicons Max

  • Disposable: Single-use, ensuring hygiene and reducing the risk of contamination.
  • Sterile: Packaged in sterile conditions for safe medical use.
  • Non-Sterile: Available for environments where sterilization is handled separately.
  • Variety of Sizes: Available in different sizes for various medical procedures.
  • Intended Use: Primarily used for diagnostic or therapeutic purposes in healthcare settings.






Gentle Tissue Dissociation and Fine Homogenization

Medimachine II

Efficient tissue processing

to enhance clinical outcomes

Precise cutting and homogenization

for uniform sample preparation

Adjustable settings

for a variety of tissue types and applications

High-torque motor

ensures optimal performance under load

Integrated safety mechanisms

to protect both user and sample integrity

Compact and user-friendly design

for easy integration into medical workflows

Quick cycle times

to support fast-paced clinical environments

Durable, high-quality materials

designed for long-lasting, reliable use

Medimachine II

The Medimachine II is designed to provide both gentle tissue dissociation and fine homogenization using appropriate disposable devices with different technical features according to the required procedure.

The instrument has an interactive touch-screen for selection of operation mode and for consulting the on board manual. This specific screen has been selected for use wearing lab gloves. The software offers multi-lingual settings and two modes: manual and automatic.

Consumables

Medicons
Medicons
Medicons
A sterile, single-use tissue dissection tools designed for precision, safety, and efficiency in laboratory and clinical settings.

Associated Consumables

Filcons Max
Filcons Max
Filcons Max
A disposable filter for separating cells and nuclei. It's porous membrane has an effective surface area of 660 mm2.

For Efficient Automated Tissue Dissociation

MediMax 2.0 System

Enchanced Tissue Disagregation

for precise sample consistency

Advanced motor technology

ensures reliable, high-speed processing

Ease of use

standardized operating procedure for error reduction

Consumable compatibilty

compatible with full Medicon Flow Cyomtery range

Built-in safety features

to protect both operator and samples

Compact design

optimized for space-saving in labs or operating rooms

Fast and efficient processing

for quick turnaround in time-sensitive tasks

Robust, durable construction

designed for continuous, high-performance use

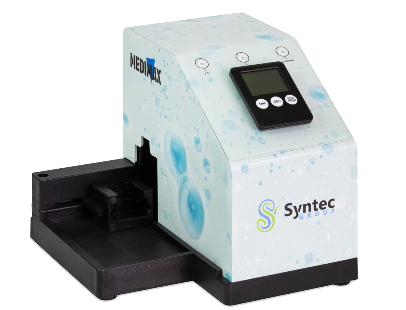

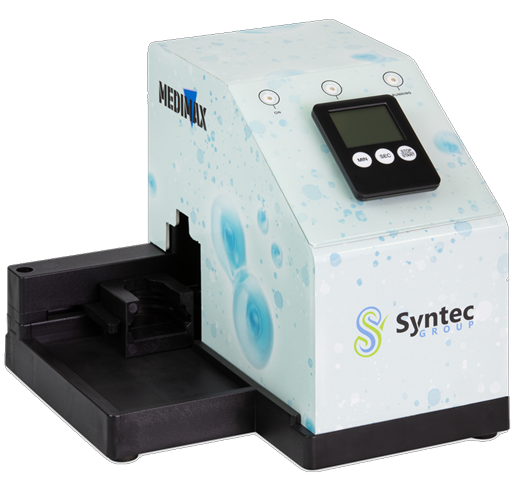

MediMax 2.0

The MediMax 2.0 system is a sample preparation system for the automated, mechanical disaggregation of solid animal or plant tissues for flow cytometric analysis, cell culture, or DNA amplification techniques.

The MediMax 2.0 system makes tissue preparation safe and independent of operator technique, and facilitates standardizing the preparation of all tissue types. Times and protocols can even be standardized across labs.

The MediMax 2.0 system consists of three components: MediMax 2.0, Medicons, Medicons-Max, Filcons & Filcons Max. The compact MediMax 2.0 unit is the heart of the system. It works with all types of Medicons and operates at a constant speed of approximately 80 rpm.

The MediMax 2.0 system consists of three components:

MediMax 2.0
Medicons
Filcons & Filcons Max

The compact MediMax 2.0 unit is the heart of the system. It works with all types of Medicons and operates at a constant speed of approximately 80 rpm.

Specifications
Code: 79210
Supply: 82/250 Vac 60/50 Hz. (switching)
Absorption: 6W
Weight: 2.5 Kg
Dimensions: cm. 22 x 25 x 20
Brochure
PDF MediMax 2.0 System

The Medicons is then inserted into the MediMax and the machine is started. The machine can be run from 10 seconds to 4 minutes depending upon the tissue type and the cell suspension you want. As the tissue is disaggregated, the cells pass through the screen into the suspension liquid in the bottom of the Medicons. Once the tissue is dissociated, the Medicons is removed from the MediMax 2.0. A needleless syringe is then inserted in the syringe port to recover the cell suspension. The Medicons may be rinsed with suspension buffer to ensure maximum cell recovery. Select the appropriate Filcons (or Filcons-Max if a 50 mL tube is used) pore size for isolation of the desired cells.

Consumables

Medicons
Medicons
Medicons
A sterile, single-use tissue dissection tools designed for precision, safety, and efficiency in laboratory and clinical settings.

Associated Consumables

Filcons Max
Filcons Max
Filcons Max
A disposable filter for separating cells and nuclei. It's porous membrane has an effective surface area of 660 mm2.
Filcon
Filcon
Filcon
A disposable filter for separating cells and nuclei. It's porous membrane has an effective surface area of 80 mm2.

Disposable Filter for Separating Cells and Nuclei

Filcons

Single-use tissue dissection tools

for efficient sample preparation

Available in multiple pore sizes

(10, 20, 30, 50,70,100,200,500 micons)

Standard cup & syringe fitting sizes

for everyday lab applications

Designed for consistent, gentle filtration

to preserve sample integrity

Compatibility

Compatible with all Medicons & Works Flows

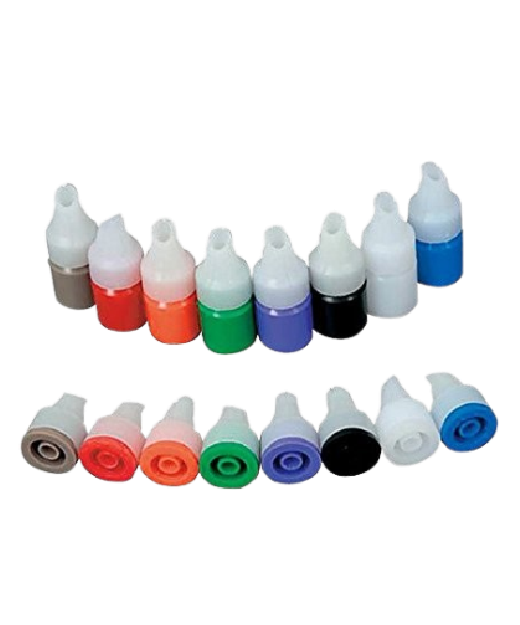

Color-coded filters

for easy pore size identification

Sterile and non-sterile options

to suit different lab protocols

Reliable construction

for reproducible and contamination-free results

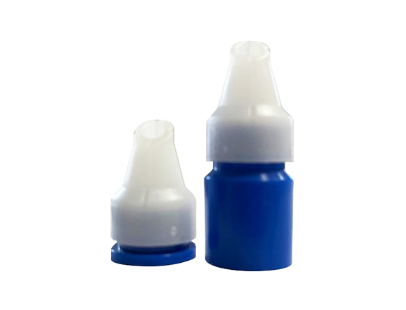

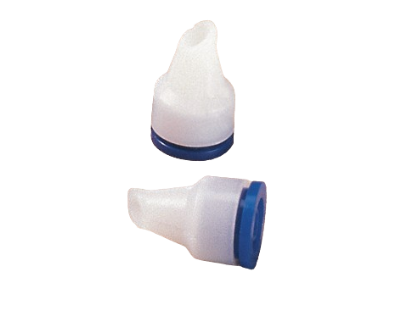

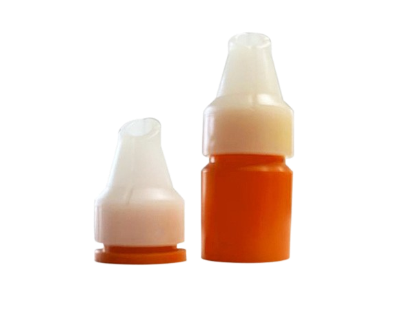

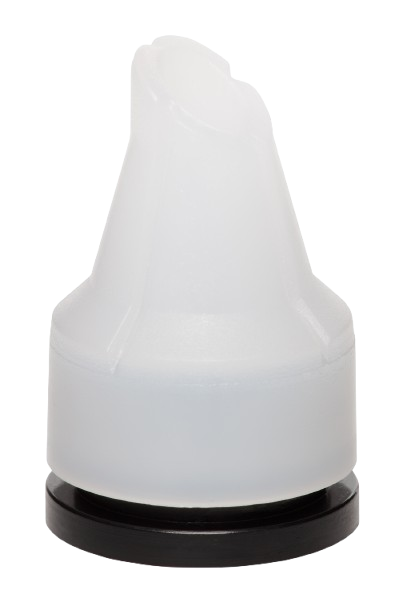

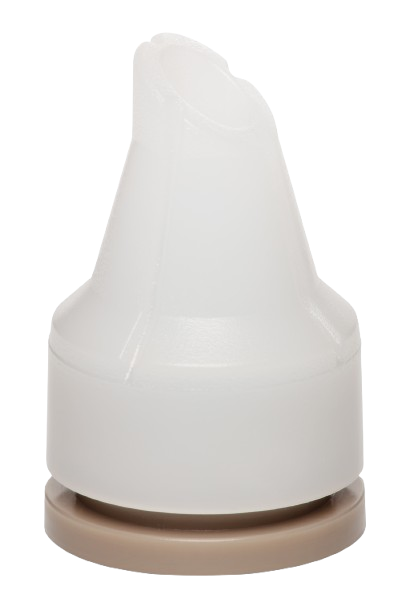

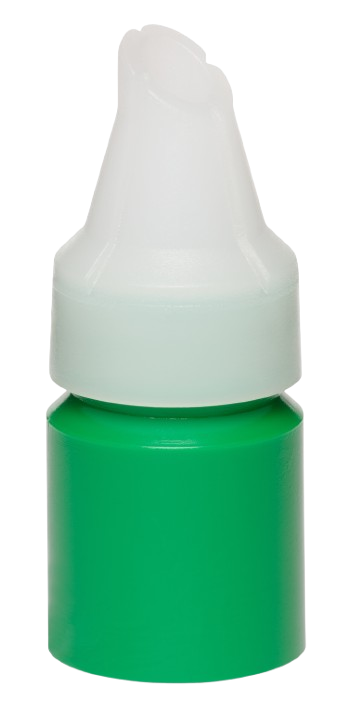

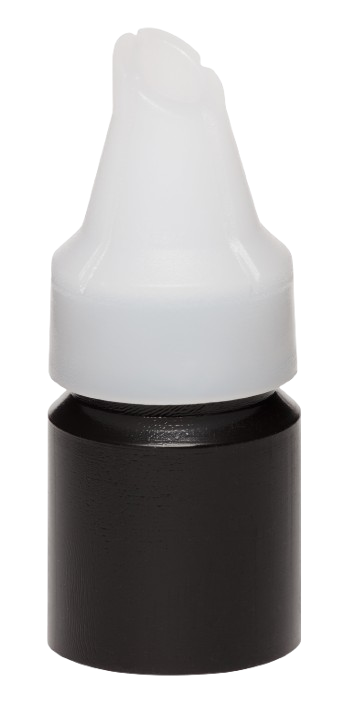

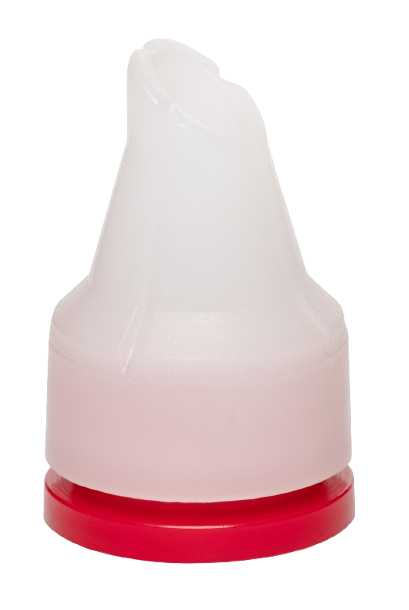

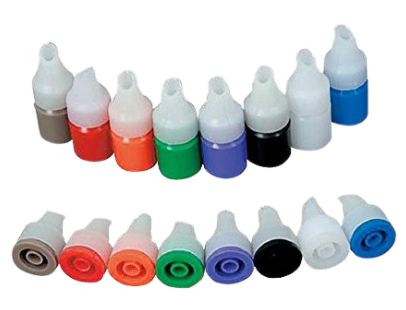

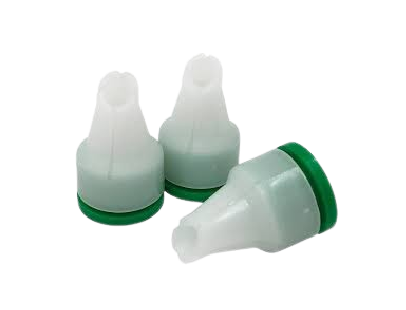

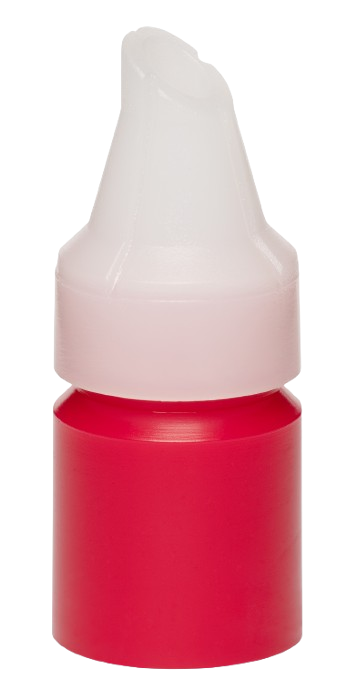

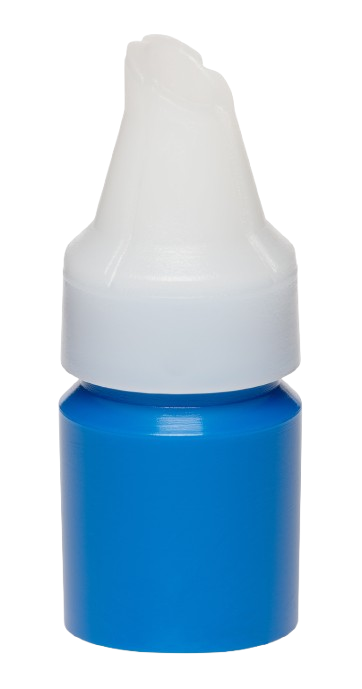

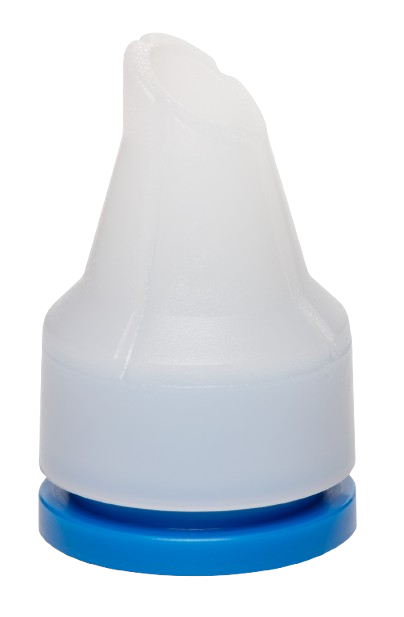

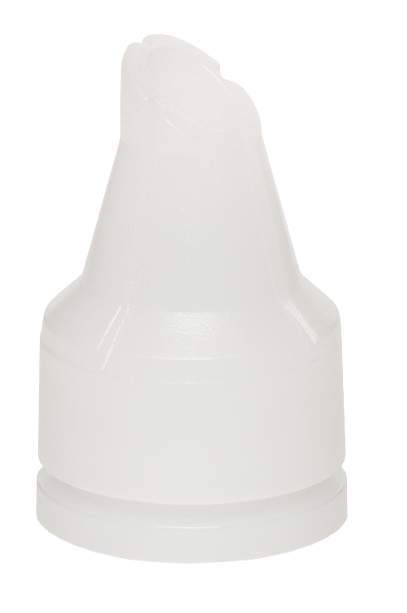

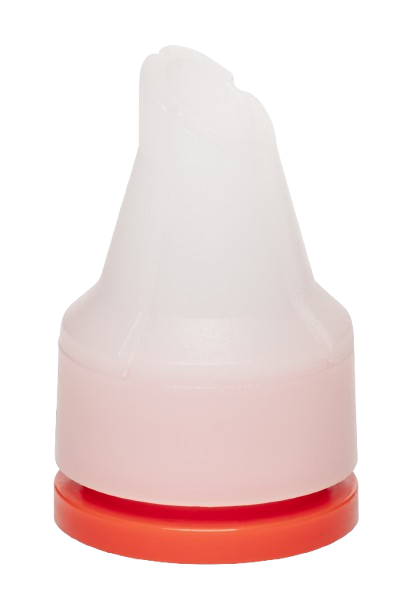

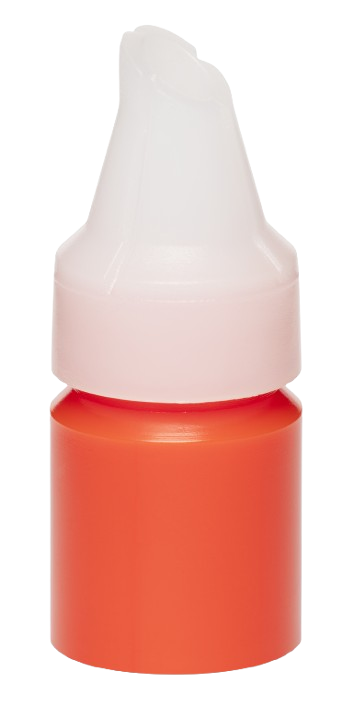

Filcons

Filcons

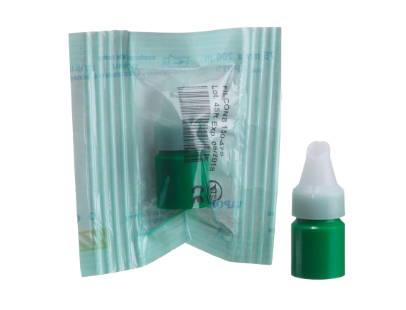

A disposable filter for separating cells and nuclei. Its porous membrane has an effective surface area of 80 mm2, enabling large quantities of cell suspensions to be filtered.

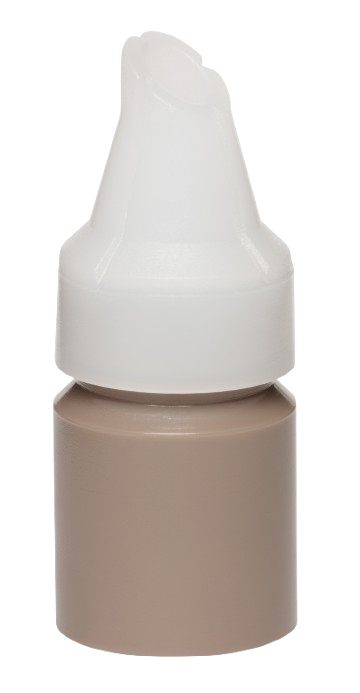

Filcons

Filcons is a disposable filter for separating cells and nuclei. Its porous membrane has an effective surface area of 80 mm2, enabling large quantities of cell suspensions to be filtered. The microporous polyethylene funnel section is designed to pass the biological material to be retrieved while trapping waste particles under 1.5µm in size. Filcons filters must not be used more than once, as subsequent specimens could be contaminated. Before use, dampen the Filcons filter membrane with the cell or nuclei suspension medium. Filcons filters with syringe fittings can be used in either suction or compression. Maximum pressure is 25 psi (1.8 bar). Whichever method is employed, is recommended anyway to use the syringe as a reservoir without applying pressure to the plunger, so that the specimen is allowed to percolate through. For quantities of less than 5 ml the cup-type Filcons filter should be used.


Specifications
Function: Cell and nuclei filtration
Cup Size: Standard format
Filtration Area: Standard filtration surface
Flow Rate: Standard flow rate
Compatibility: Compatible with standard homogenizers
Color Coding: Available in standard color options (Blue, Red, etc.)
Pore Sizes Available: 30, 50, 70, 100 micronss
Sterility Options: Sterile and non-sterile options

Filcons

After disaggregation of the tissue in the Medicons, the cell suspension is filtered using a Filcon disposable filter device. Depending upon the chosen Filcon pore size, cells or cell aggregates pass through, while larger particles are trapped. There are two types of Filcons: a syringe-fitting form which can be used with either suction or compression, which works well for quantities over 5 mL, and a cup type that works well for small quantities.


Before use, wet the Filcons filter membrane with cell suspension buffer to reduce the surface tension and facilitate the filtration process.

Isolation of nuclei, cells, and cell clusters can be achieved by varying the Filcons pore size.

Filcons

Filcons

Non Sterile

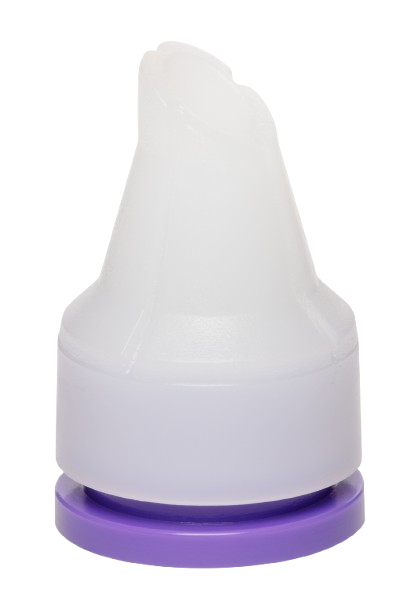

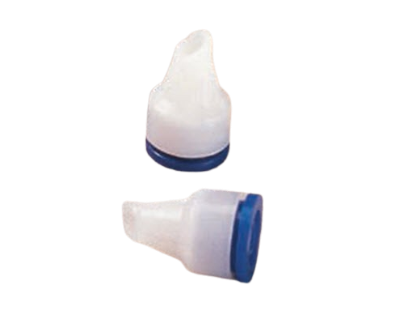

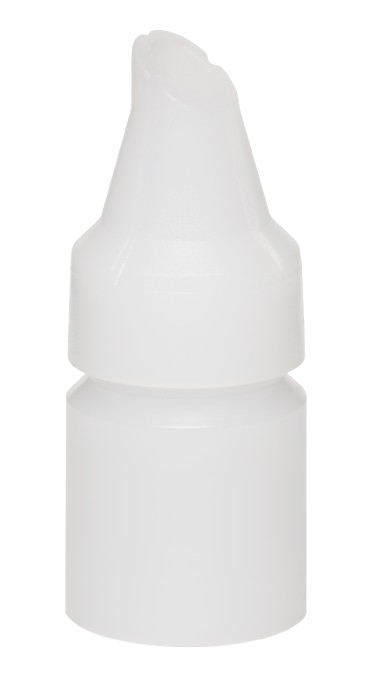

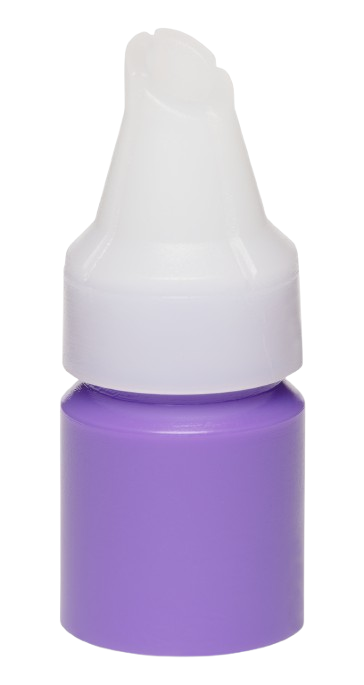

  • Syringe Fitting
    100 pcs
  •  008-10N-S/1  - 10µm filter
  •  020-22N-S/1  - 20µm filter
  •  030-33N-S/1  - 30µm filter
  •  050-47N-S/1  - 50µm filter
  •  070-67N-S/1  - 70µm filter
  •  100-98N-S/1  - 100µm filter
  •  200-20N-S/1  - 200µm filter
  •  500-50N-S/1  - 500µm filter

Non Sterile

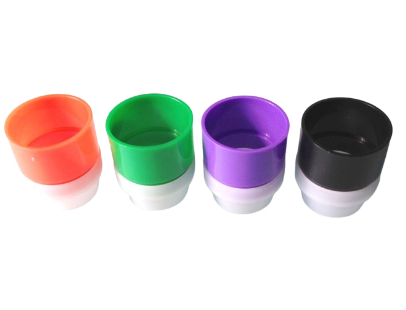

  • Cup-Type
    100 pcs
  •  108-10N-S/1  - 10µm filter
  •  120-22N-S/1  - 20µm filter
  •  130-33N-S/1  - 30µm filter
  •  150-47N-S/1  - 50µm filter
  •  170-67N-S/1  - 70µm filter
  •  200-98N-S/1  - 100µm filter
  •  220-20N-S/1  - 200µm filter
  •  550-50N-S/1  - 500µm filter

Non Sterile

  • Syringe Fitting
    300 pcs
  •  008-10N-S/3  - 10µm filter
  •  020-22N-S/3  - 20µm filter
  •  030-33N-S/3  - 30µm filter
  •  050-47N-S/3  - 50µm filter
  •  070-67N-S/3  - 70µm filter
  •  100-98N-S/3  - 100µm filter
  •  200-20N-S/3  - 200µm filter
  •  500-50N-S/3  - 500µm filter

Non Sterile

  • Cup-Type
    300 pcs
  •  108-10N-S/3  - 10µm filter
  •  120-22N-S/3  - 20µm filter
  •  130-33N-S/3  - 30µm filter
  •  150-47N-S/3  - 50µm filter
  •  170-67N-S/3  - 70µm filter
  •  200-98N-S/3  - 100µm filter
  •  220-20N-S/3  - 200µm filter
  •  550-50N-S/3  - 500µm filter


Sterile

  • Syringe Fitting
    100 pcs
  •  008-10S-S/1  - 10µm filter
  •  020-22S-S/1  - 20µm filter
  •  030-33S-S/1  - 30µm filter
  •  050-47S-S/1  - 50µm filter
  •  070-67S-S/1  - 70µm filter
  •  100-98S-S/1  - 100µm filter
  •  200-20S-S/1  - 200µm filter
  •  500-50S-S/1  - 500µm filter

Sterile

  • Cup-Type
    100 pcs
  •  108-10S-S/1  - 10µm filter
  •  120-22S-S/1  - 20µm filter
  •  130-33S-S/1  - 30µm filter
  •  150-47S-S/1  - 50µm filter
  •  170-67S-S/1  - 70µm filter
  •  200-98S-S/1  - 100µm filter
  •  220-20S-S/1  - 200µm filter
  •  550-50S-S/1  - 500µm filter

Sterile

  • Syringe Fitting
    300 pcs
  •  008-10S-S/3  - 10µm filter
  •  020-22S-S/3  - 20µm filter
  •  030-33S-S/3  - 30µm filter
  •  050-47S-S/3  - 50µm filter
  •  070-67S-S/3  - 70µm filter
  •  100-98S-S/3  - 100µm filter
  •  200-20S-S/3  - 200µm filter
  •  500-50S-S/3  - 500µm filter

Sterile

  • Cup-Type
    300 pcs
  •  108-10S-S/3  - 10µm filter
  •  120-22S-S/3  - 20µm filter
  •  130-33S-S/3  - 30µm filter
  •  150-47S-S/3  - 50µm filter
  •  170-67S-S/3  - 70µm filter
  •  200-98S-S/3  - 100µm filter
  •  220-20S-S/3  - 200µm filter
  •  550-50S-S/3  - 500µm filter

High-Capacity Disposable Filter for Large-Volume Cell and Nuclei Separation

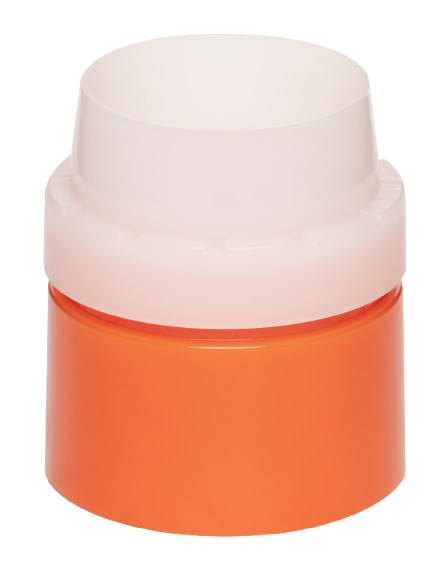

Filcons Max

High-capacity filters

for larger tissue and cell samples

Expanded filtration surface area

for faster processing

Same multiple pore size options

(30, 50, 70, 100 microns)

Reinforced design

to handle greater sample loads

Optimized flow rate

for time-sensitive, high-volume work

Compatible with high-throughput systems

and advanced homogenizers

Color-coded for easy identification

matching standard Filcon colors

Available in sterile and non-sterile formatsn

for maximum flexibility

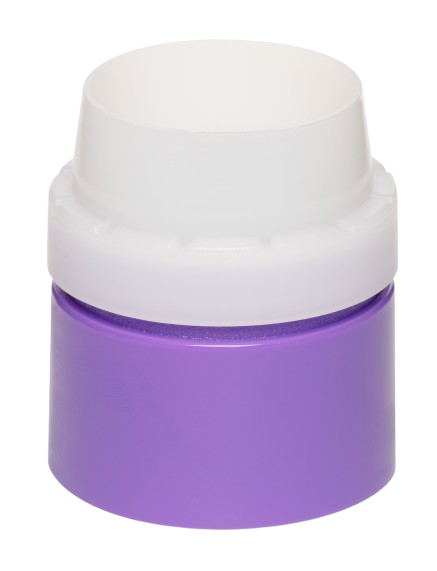

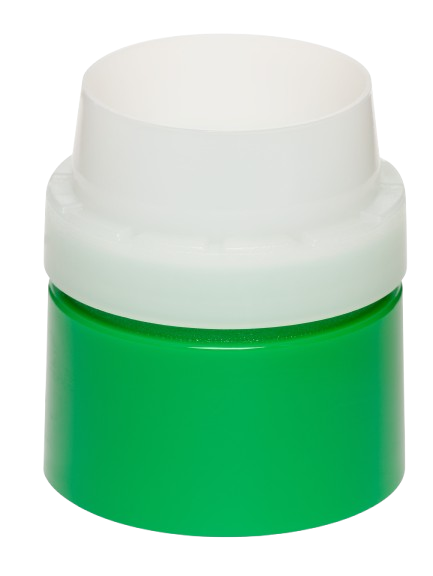

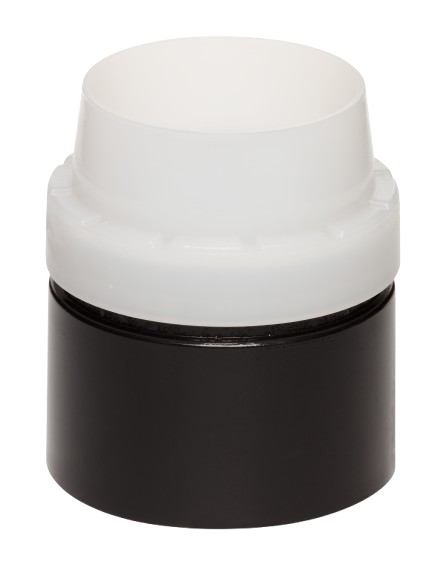

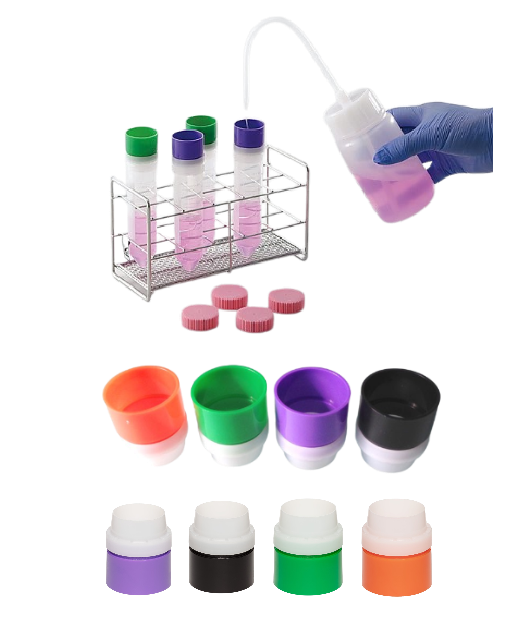

Filcons Max

Filcons-Max

A disposable filter for separating cells and nuclei. Its porous membrane has an effective surface area of 660 mm2, enabling large quantities of cell suspensions to be filtered.

Filcons-Max

Filcons-Max is a disposable filter for separating cells and nuclei. Its porous membrane has an effective surface area of 660 mm2, enabling large quantities of cell suspensions to be filtered. The microporous polyethylene funnel section is designed to pass the biological material to be retrieved while trapping waste particles under 1.5μm in size. Filcons-Max must not be used more than once, as subsequent specimens could be contaminated. Before use, dampen the filter membrane with the medium that is going to be used for filtration. Filcons-Max are only available as cup-type. They fit perfectly the 50 ml tubes as indicated in the pictures All packages contain 100 units. Non sterile Filcons-max are packed in 20 units/bag, Sterile FIlcons-Max are packed 1 unit/blister.

Specifications
Function: Cell and nuclei filtration, optimized for larger samples
Cup Size: Larger format for high-capacity filtration
Filtration Area: Expanded filtration surface for faster processing
Flow Rate: Improved flow rate for larger sample volumes
Compatibility: Optimized for high-throughput homogenizers
Color Coding: Available in standard color options (Blue, Red, etc.)
Pore Sizes Available: 30, 50, 70, 100 micronss
Sterility Options: Sterile and non-sterile options
Brochure
PDF Filcons Max

Filcons

After disaggregation of the tissue in the Medicons, the cell suspension is filtered using a Filcon disposable filter device. Depending upon the chosen Filcon pore size, cells or cell aggregates pass through, while larger particles are trapped. There are two types of Filcons: a syringe-fitting form which can be used with either suction or compression, which works well for quantities over 5 mL, and a cup type that works well for small quantities.


Before use, wet the Filcons filter membrane with cell suspension buffer to reduce the surface tension and facilitate the filtration process.

Isolation of nuclei, cells, and cell clusters can be achieved by varying the Filcons pore size.

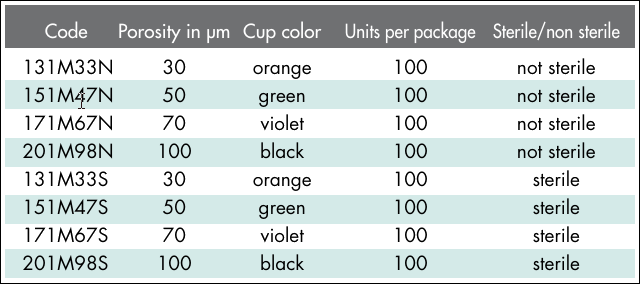

Filcons Max

Filcons Max

Non Sterile

  • Cup-Type
    100 pcs
  •  131M33N  - 30µm Porosity
  •  151M47N - 50µm Porosity
  •  171M67N  - 70µm Porosity
  •  201M98N  - 100µm Porosity

Sterile

  • Cup-Type
    100 pcs
  •  131M33S  - 30µm Porosity
  •  151M47S - 50µm Porosity
  •  171M67S  - 70µm Porosity
  •  201M98S  - 100µm Porosity

Disposable Tissue Disaggregator for Routine Cell Dissociation

Medicons

Single-use tissue dissection tools

for sterile and consistent results

Optimized blade geometry

for precise tissue fragmentation

Easy integration

with compatible tissue processors

Available in multiple configurations

to suit various tissue types

Designed for minimal sample loss

and maximum yield

Sterile and ready-to-use

to support streamlined workflows

Color-coded options

for easy identification

Manufactured to high standards

for reproducible outcomes

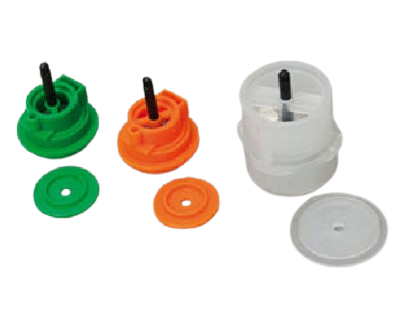

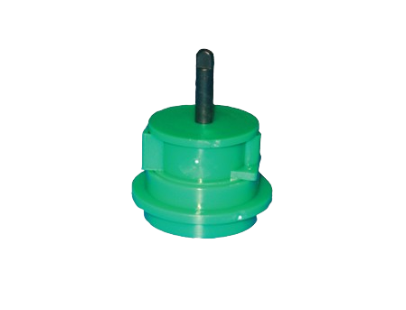

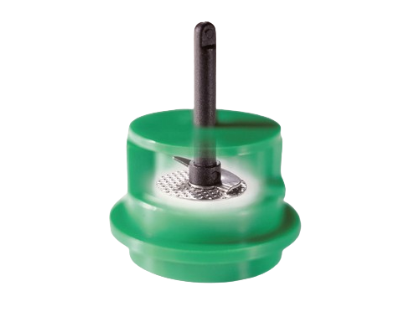

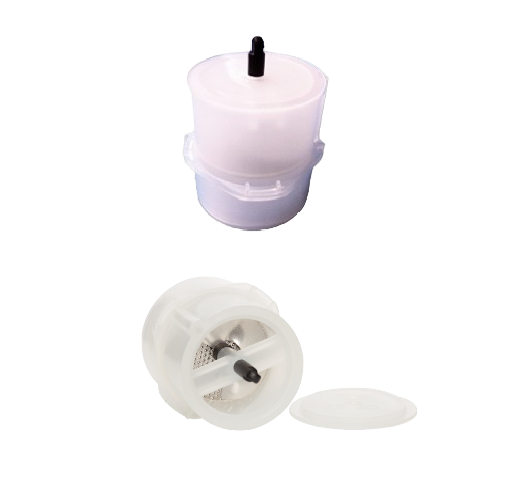

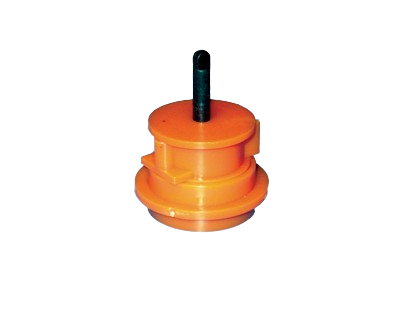

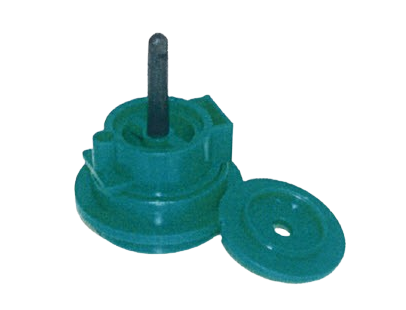

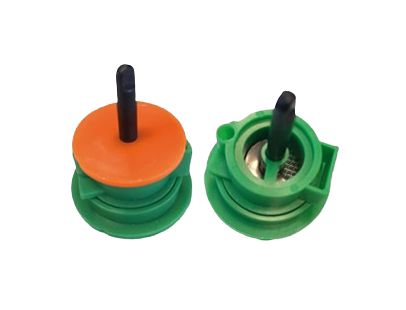

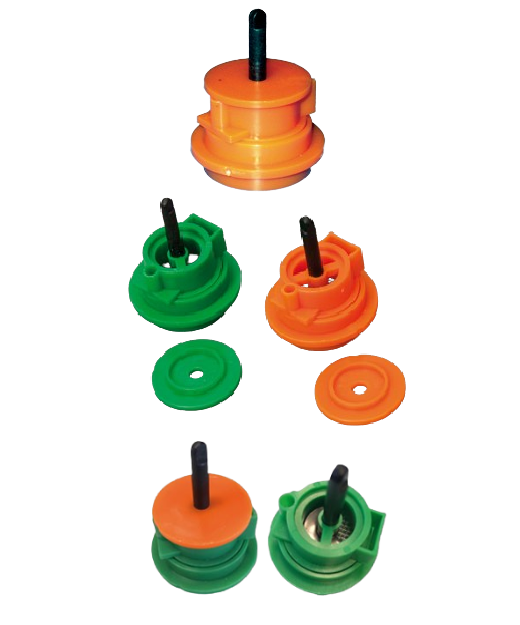

Medicons

Medicons are Sterile & Non-Sterile, single-use tissue dissection tools designed for precision, safety, and efficiency in laboratory and clinical settings. Engineered with optimized blade geometry, they enable consistent fragmentation of a wide range of tissue types while minimizing sample loss. Available in various configurations and color-coded for easy identification, Medicons seamlessly integrate with compatible tissue processors, supporting high-quality, reproducible results every time.

Medicons

Disposable disaggregator with 35µm (orange) or 50µm (green) separator screens. H.D. Polyethylene casing. Sterile and non-sterile. The internal mechanical part is in stainless steel and is made up of a fixed screen with about 100 hexagonal bore-holes, around each of which there are 6 microblades. 1 ml liquid solution.

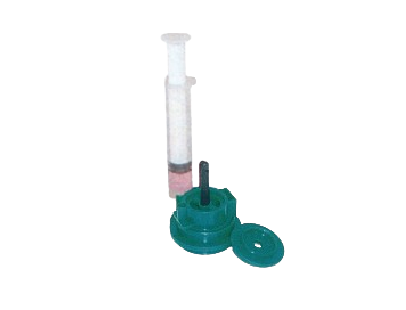

Medicons - P (green with orange lid)

Disposable disaggregator with about 50-100 um separator screen. HDPE casing, polymeric microblades. Available sterile and Non sterile. 1ml liquid solution. The cut of the cell cluster size is about 70 um


Specifications
Medicons Code: 79300 SN / S - 79400 SN / S
Function: Tissue disaggregation for cell prep
Cup Size: Standard
Blade Strength: Standard for routine use
Sample Volume: Suitable for small to medium samples
Compatibility: Standard tissue processors
Color Coding: Standard system (Blue, Red, etc.)
Configurations: Multiple types for different tissues
Sterility Options: Sterile, single-use
A35 μm Recovery of cell sizes up to 160 μm
50 μm Recovery of cell sizes up to 230 μm
Brochure
PDF Medicons
porous membrane
Never place the tissue into a dry Medicons
Do not overfill the Medicons with suspension buffer. This will cause the tissue to float and can result in inadequate disaggregation: dilution must be between 1 and 1,2 mL for standard Medicons (codes 79300 and 79400) and between 15 and 16 mL for Large Medicons (code 79500).
If the amount of tissue is very small, the suspension buffer can be replaced with staining solution for maximum cell recovery.
As the rotating element passes over the microblades, it tends to blunt the edges, reducing the cutting efficiency.
Do not reuse the Medicons for successive samples.
Medicons standard (green and orange) are available (sterile or not sterile) in two mesh sizes.
*IVD and research use only - Not Medical devices

High-Capacity Disposable Disaggregator for Large-Volume Cell Dissociation

Medicons Max

High-capacity dissection units

for larger tissue volumes

Reinforced structure

for demanding processing needs

Enhanced blade design

for superior homogenization

Extended use compatibility

with advanced devices

Efficient flow-through design

for faster processing

Secure locking mechanism

for stable, safe operation

Ideal for high-throughput labs

or bulk sample prep

Sterile, single-use format

to ensure contamination-free results

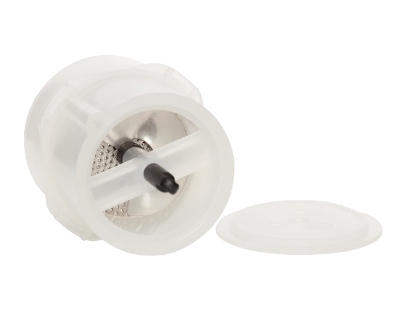

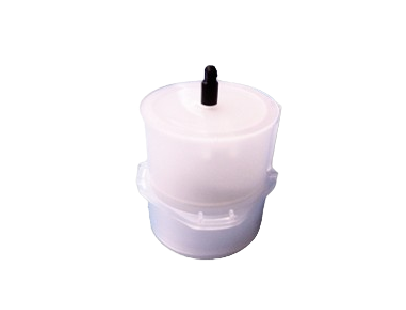

Medicons Max

Medicons Max are advanced, high-capacity dissection units built to handle larger tissue volumes with speed and precision. Featuring a reinforced structure and enhanced blade design, they deliver superior homogenization for demanding applications. Ideal for high-throughput labs and bulk sample preparation, Medicons Max offer a secure, flow-efficient solution while maintaining the sterility and convenience of single-use functionality.

Medicons Max

Disposable disaggregator with 50µm separator screens. H.D. Polyethylene casing. Sterile and non-sterile. The internal mechanical part is in stainless steel and is made up of a fixed screen with about 250 hexagonal bore-holes, around each of which there are 6 microblades. 16 ml liquid solution.


A stainless steel element rotates on the screen, bringing the tissue to the blades and letting the gently dissociated parts pass through the bore-holes. A micropump positioned under the screen makes sure that the liquid passes through the bore-holes, maintaining them constantly clean. Disaggregation of the sample takes from 30 seconds up to 4 minutes. Small quantities of tissue are sufficient because the recovery rate is very high.

Specifications
Medicons Max Code: 79500 SN - 79500 S
Function: Tissue disaggregation for cell prep
Cup Size: Larger format for higher capacity
Blade Strength: Reinforced for tougher or larger tissue samples
Sample Volume: Designed for large-volume sample processing
Compatibility: Optimized for high-throughput homogenizers
Color Coding: Standard system (Blue, Red, etc.)
Configurations: Multiple types for different tissues with larger capacity options
Sterility Options: Sterile, single-use
A35 μm Recovery of cell sizes up to 160 μm
50 μm Recovery of cell sizes up to 230 μm
Brochure
PDF Medicons
porous membrane
Never place the tissue into a dry Medicons
Do not overfill the Medicons with suspension buffer. This will cause the tissue to float and can result in inadequate disaggregation: dilution must be between 1 and 1,2 mL for standard Medicons (codes 79300 and 79400) and between 15 and 16 mL for Large Medicons (code 79500).
If the amount of tissue is very small, the suspension buffer can be replaced with staining solution for maximum cell recovery.
As the rotating element passes over the microblades, it tends to blunt the edges, reducing the cutting efficiency.
Do not reuse the Medicons for successive samples.
Large Medicons Max are available in 50 μm mesh size.
*IVD and research use only - Not Medical devices
Syntec Group Supplier of Premium Scientific and Clinical Instruments, Products & Services to Irish and International Markets

Supplier of Premium Scientific and Clinical Instruments, Products & Services to Irish and International Markets.

Syntec is committed to providing the very best service quality and customer support to our clients. Syntce is a ISO 13485 accredited company.

Quick Links

Divisions

Contact Us

  • Address: Syntec,
    Unit 618 Northwest Logistics Park,
    Ballycoolin, Dublin 15,
    D15PY00, Ireland
  • Email: info@syntec.ie
  • Tel: +353 1 8612100
  • Fax: +353 1 8612101
COPYRIGHT© 2022 SYNTEC GROUP | PRIVACY POLICY | TERMS OF USE
