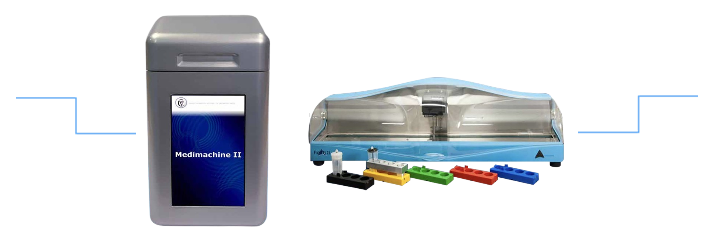

FASTH21 & Medimachine II

Sample Preparation for Residues Extraction, Molecules and Bacterial Analysis
Homogenization Systems

Molecules and Bacterial Analysis and Sample Preparation for Residues Extraction and Analysis

Homogenization Systems

FASTH21 is a fully automated system for tissue homogenization used in conjunction with single use consumables.
Food Con7 (Medimachine II & FASTH21) is a single use Single use homogenizer for samples up to 25 ml..
PRYPCONS-B & PRYPCONS (Medimachine II & FASTH21) is a single use homogenizer for soft samples up to 6 ml.
Medimachine II is designed to provide both gentle tissue dissociation and fine homogenization.

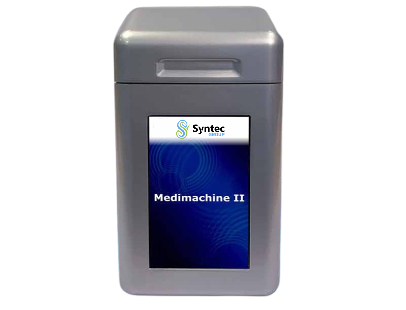

Medimachine II

The Medimachine II is designed to provide both gentle tissue dissociation and fine homogenization.

Fasth21

The Fasth21 is a fully automated system for tissue homogenization used in conjunction with single use consumables

Medimachine II

The Medimachine II is designed to provide both gentle tissue dissociation and fine homogenization.

Medimachine II

MediMax 2.0

The Fasth21 is a fully automated system for tissue homogenization used in conjunction with single use consumables

Fasth21

Gentle Tissue Dissociation and Fine Homogenization

Medimachine II

Efficient tissue processing

to enhance clinical outcomes

Precise cutting and homogenization

for uniform sample preparation

Adjustable settings

for a variety of tissue types and applications

High-torque motor

ensures optimal performance under load

Integrated safety mechanisms

to protect both user and sample integrity

Compact and user-friendly design

for easy integration into medical workflows

Quick cycle times

to support fast-paced clinical environments

Durable, high-quality materials

designed for long-lasting, reliable use

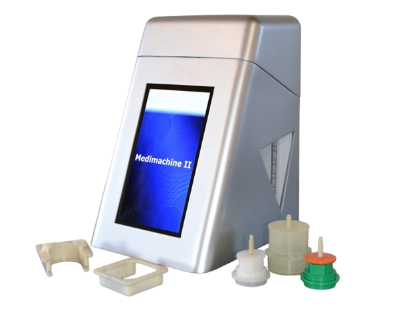

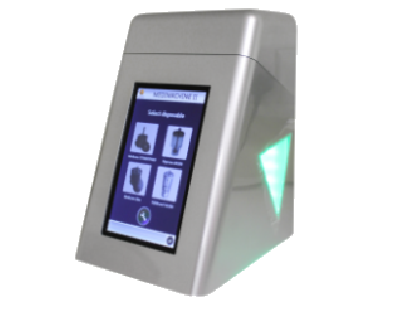

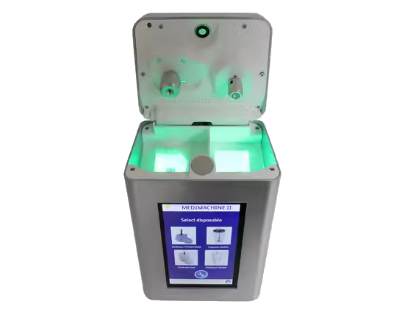

Medimachine II

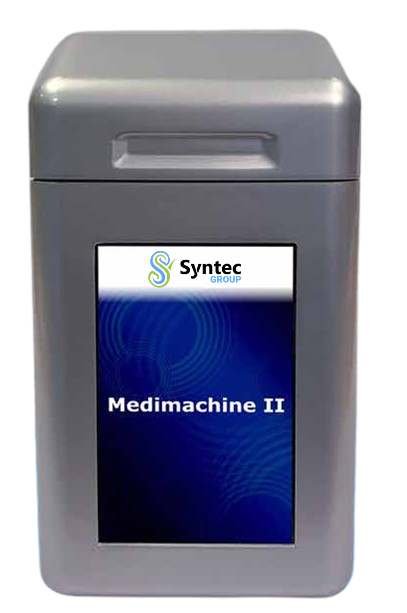

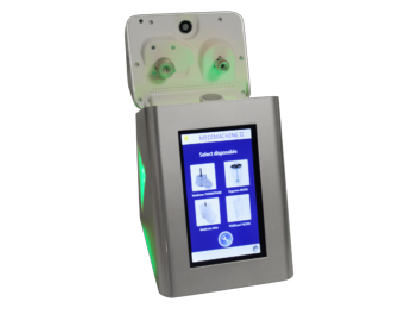

The Medimachine II is designed to provide both gentle tissue dissociation and fine homogenization using appropriate disposable devices with different technical features according to the required procedure.

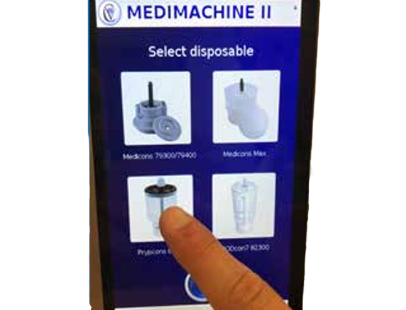

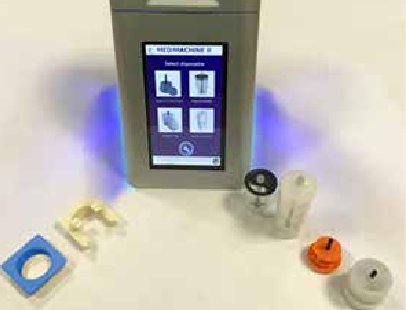

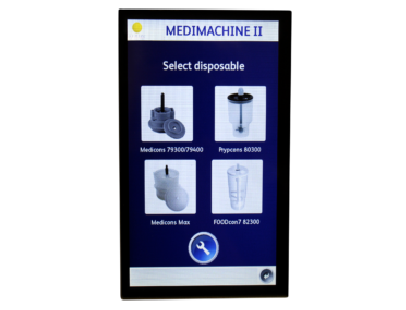

The instrument has an interactive touch-screen for selection of operation mode and for consulting the on board manual. This specific screen has been selected for use wearing lab gloves. The software offers multi-lingual settings and two modes: manual and automatic.

Consumables

Medicons
Medicons
Medicons

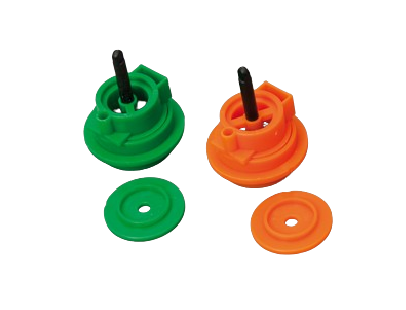

A sterile, single-use tissue dissection tools designed for precision, safety, and efficiency in laboratory and clinical settings.

Associated Consumables

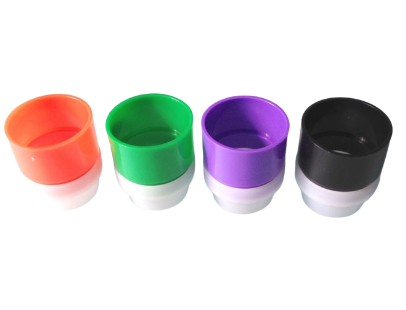

Filcons Max
Filcons Max
Filcons Max
A disposable filter for separating cells and nuclei. It's porous membrane has an effective surface area of 660 mm2.



Fully Automated System for Tissue Homogenization

FASTH21

Rapid tissue homogenization

for accelerated sample preparation

Consistent processing speeds

to maintain sample integrity

Pre-set and customizable programs

for various clinical applications

Low-vibration operation

for user comfort and noise reduction

Safety interlock system

to prevent operation when unsecured

Sleek, space-saving footprint

ideal for crowded lab benches

Quick-load chamber access

to streamline workflow

Robust engineering

for long-term, high-volume performance

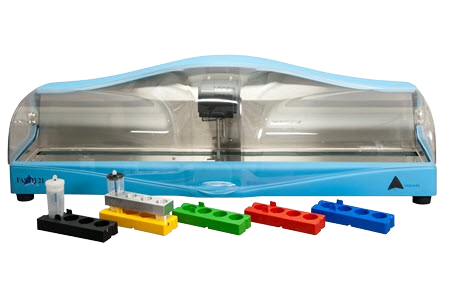

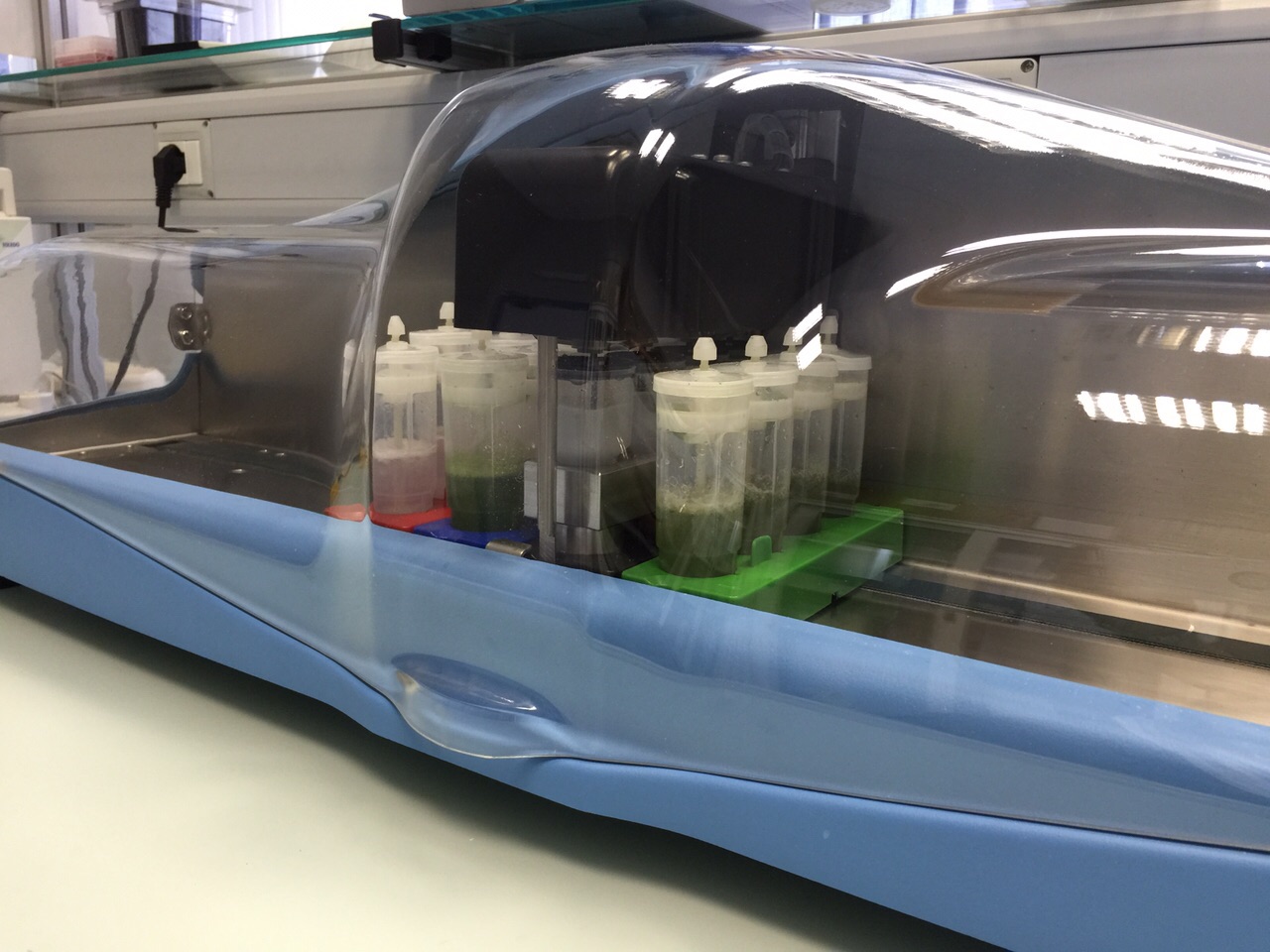

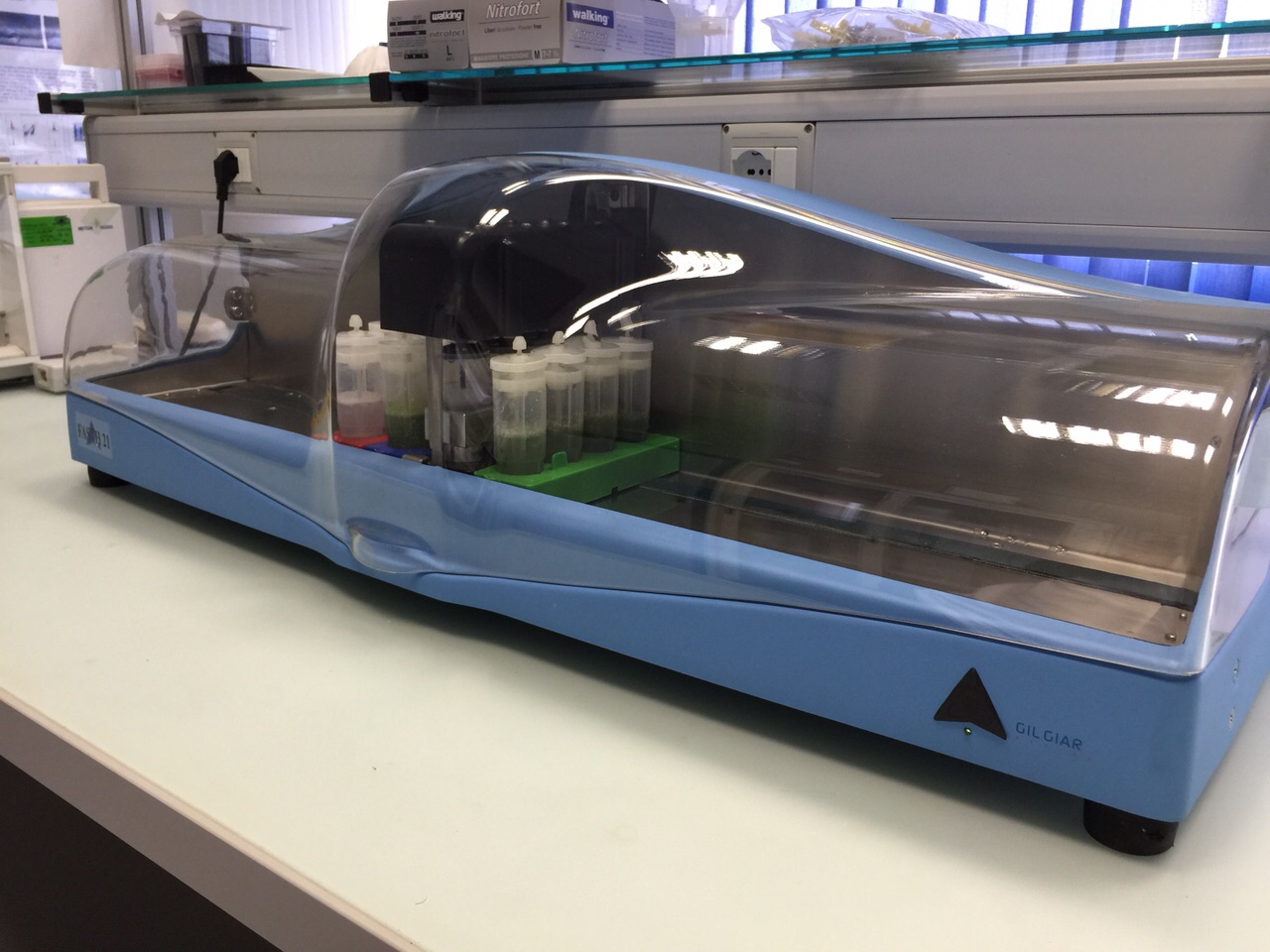

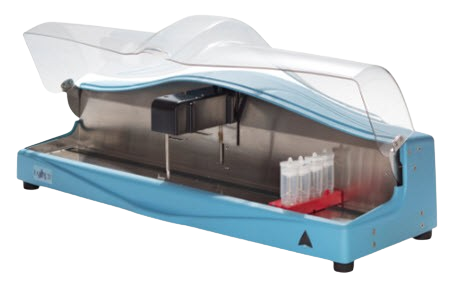

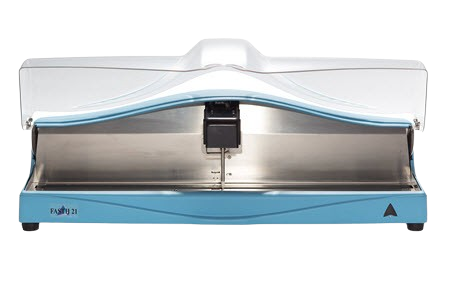

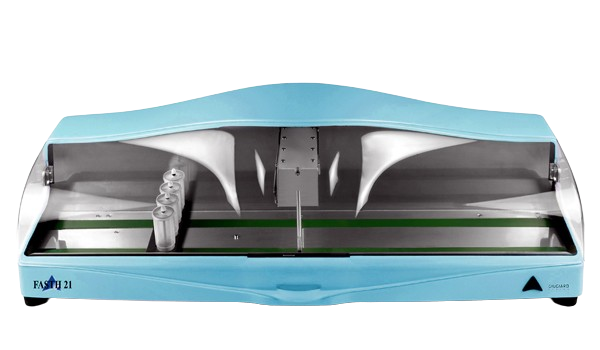

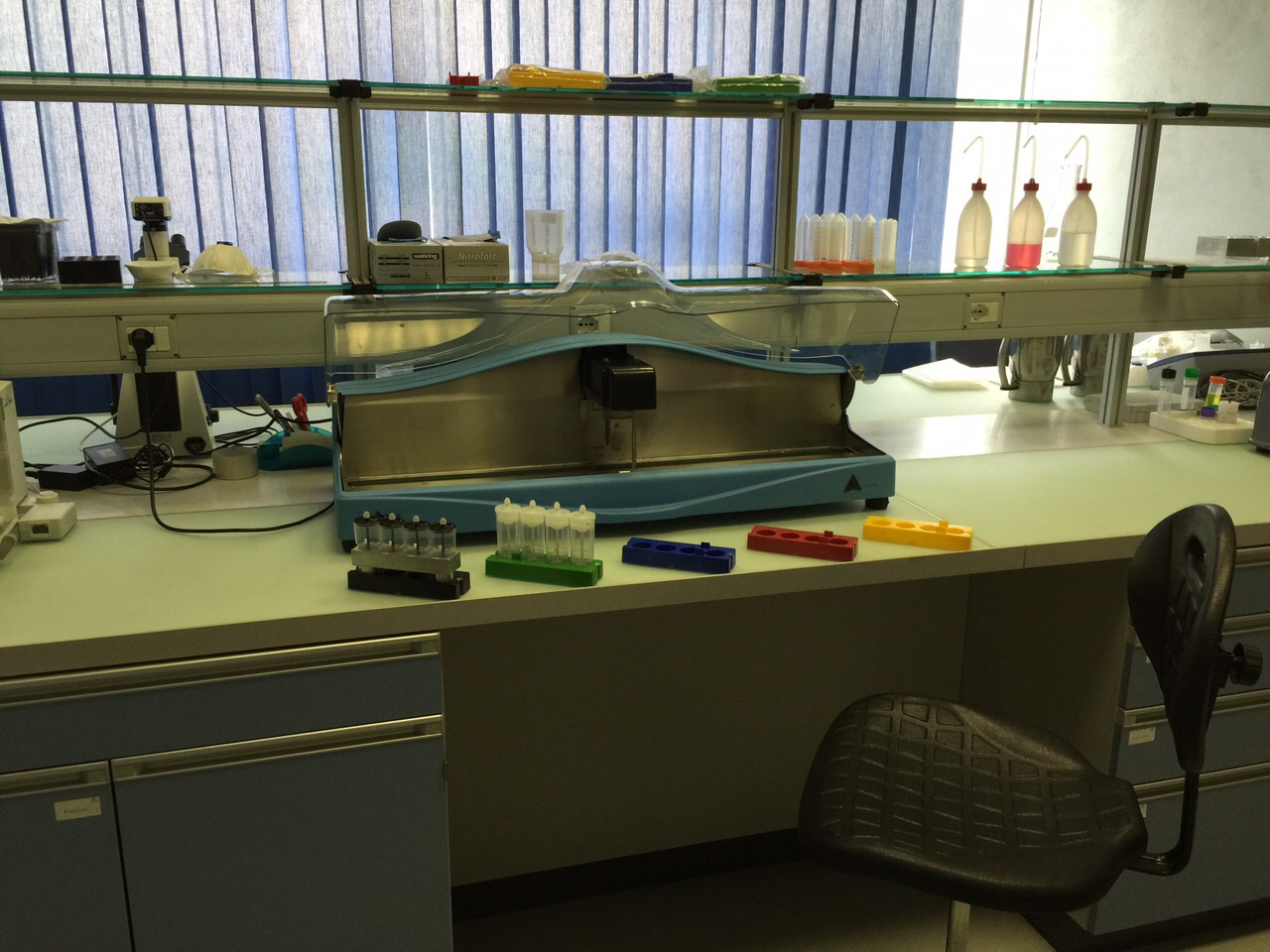

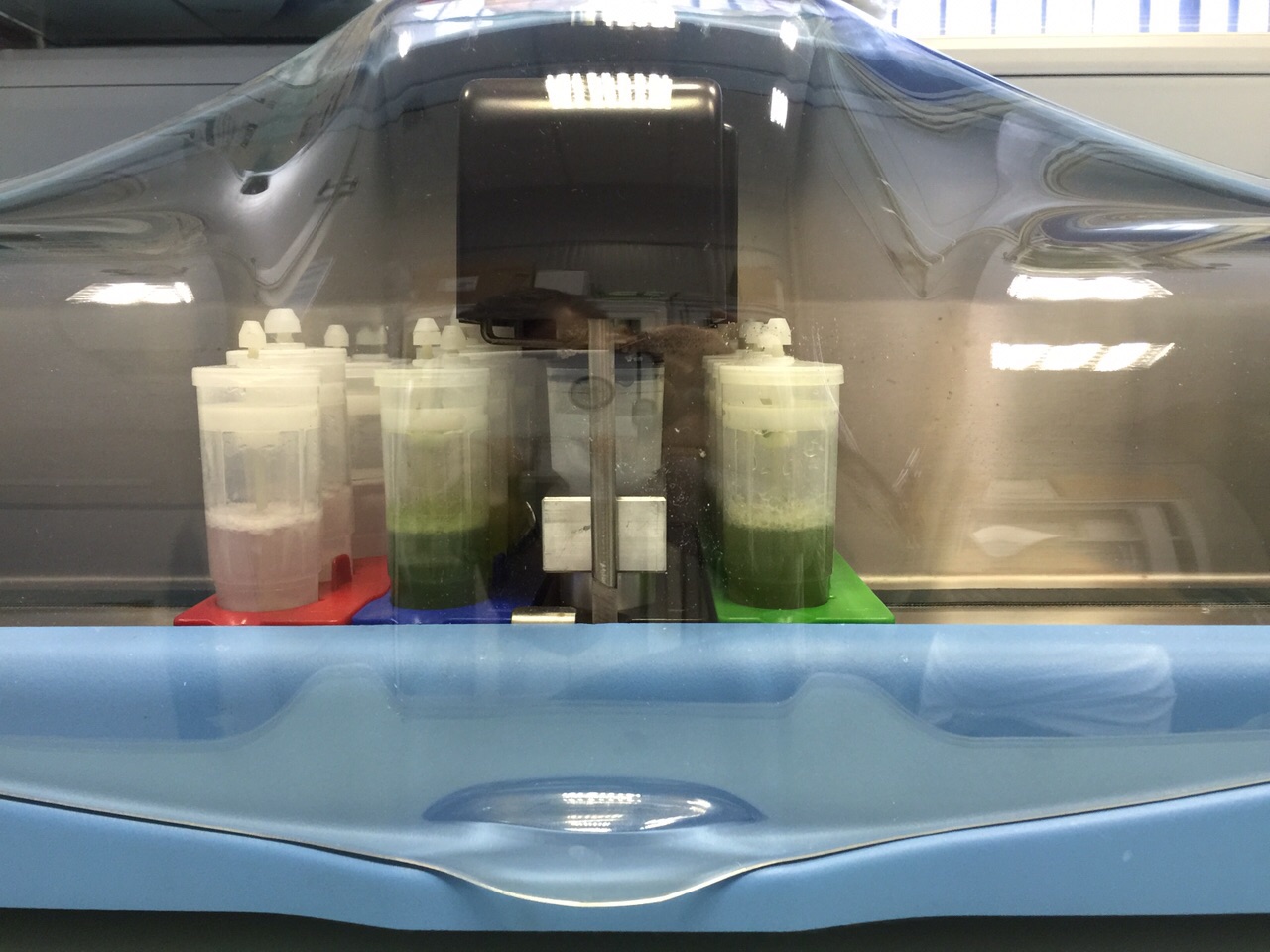

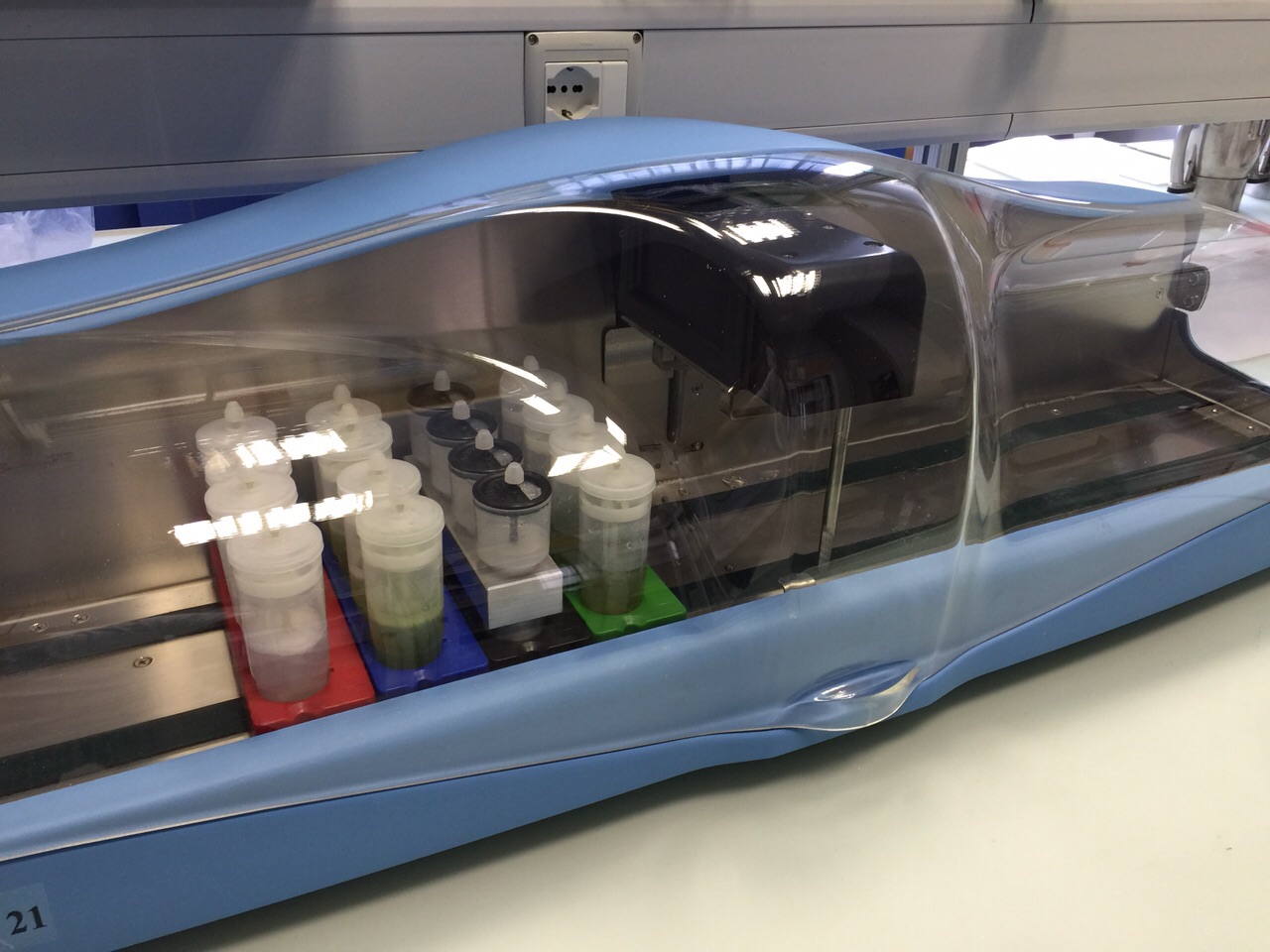

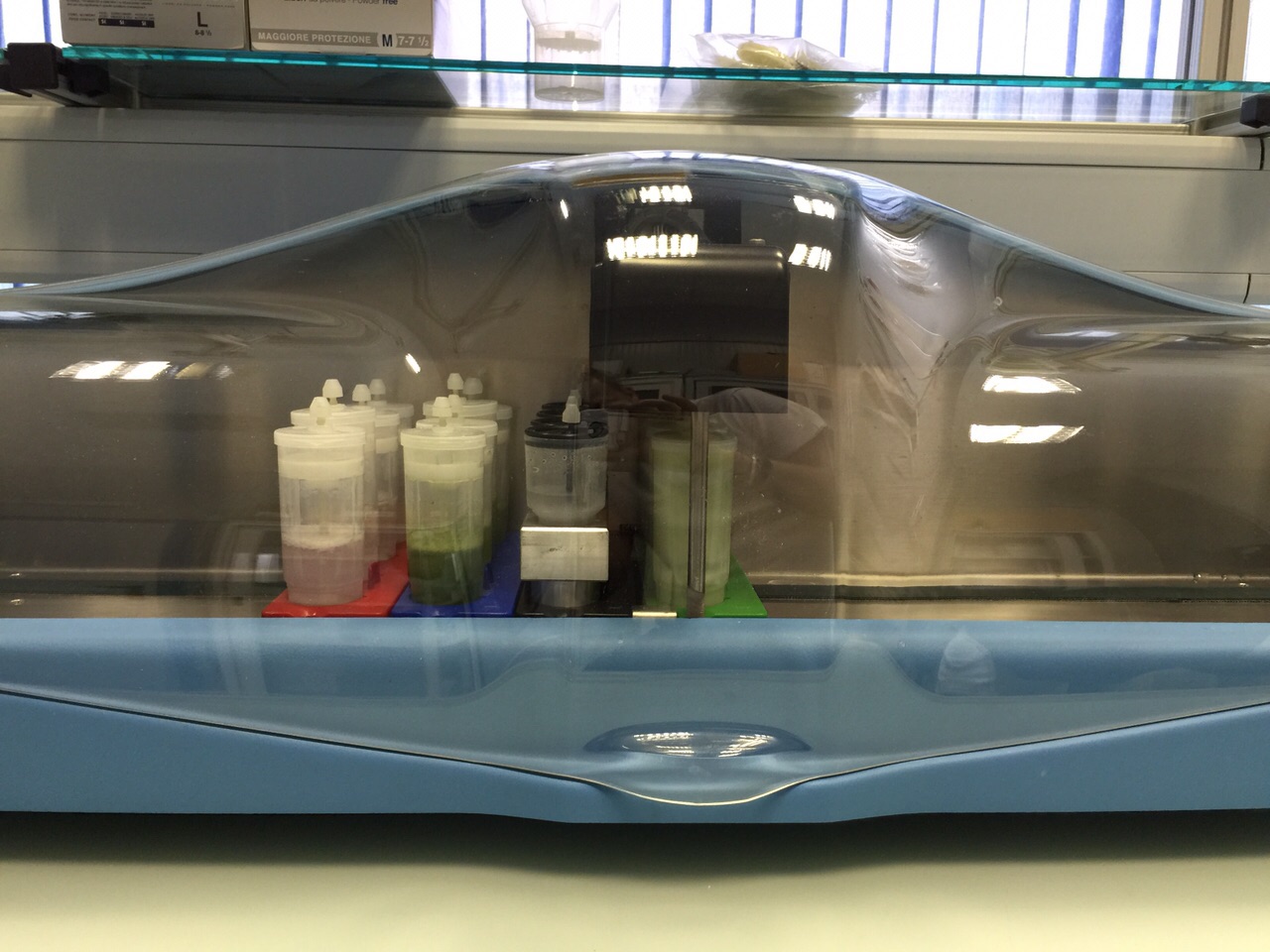

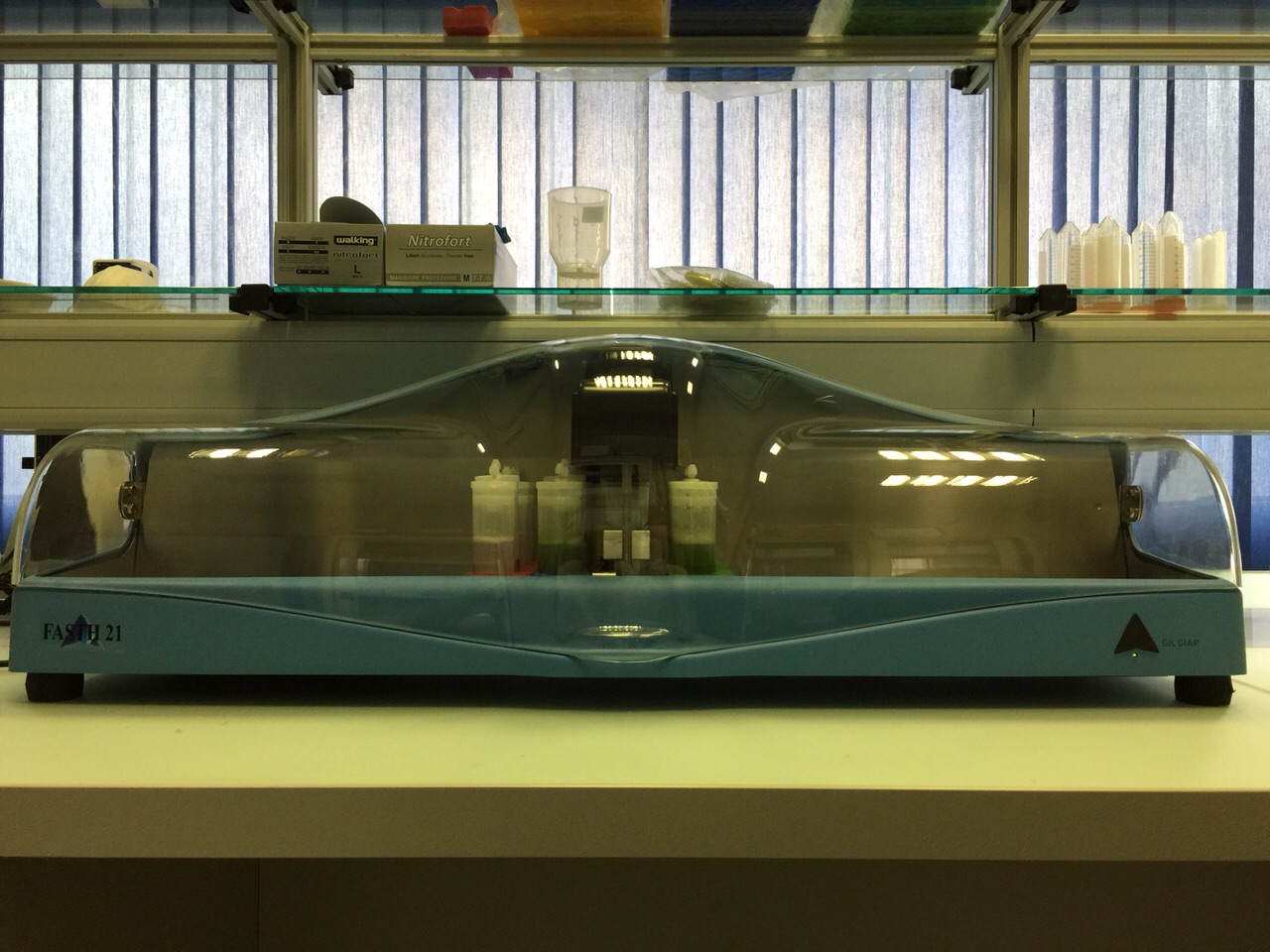

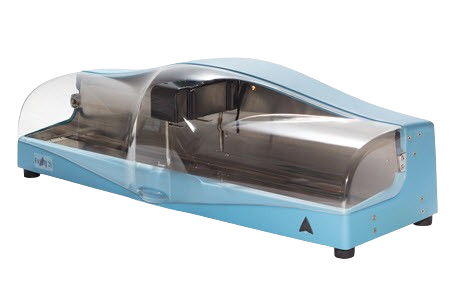

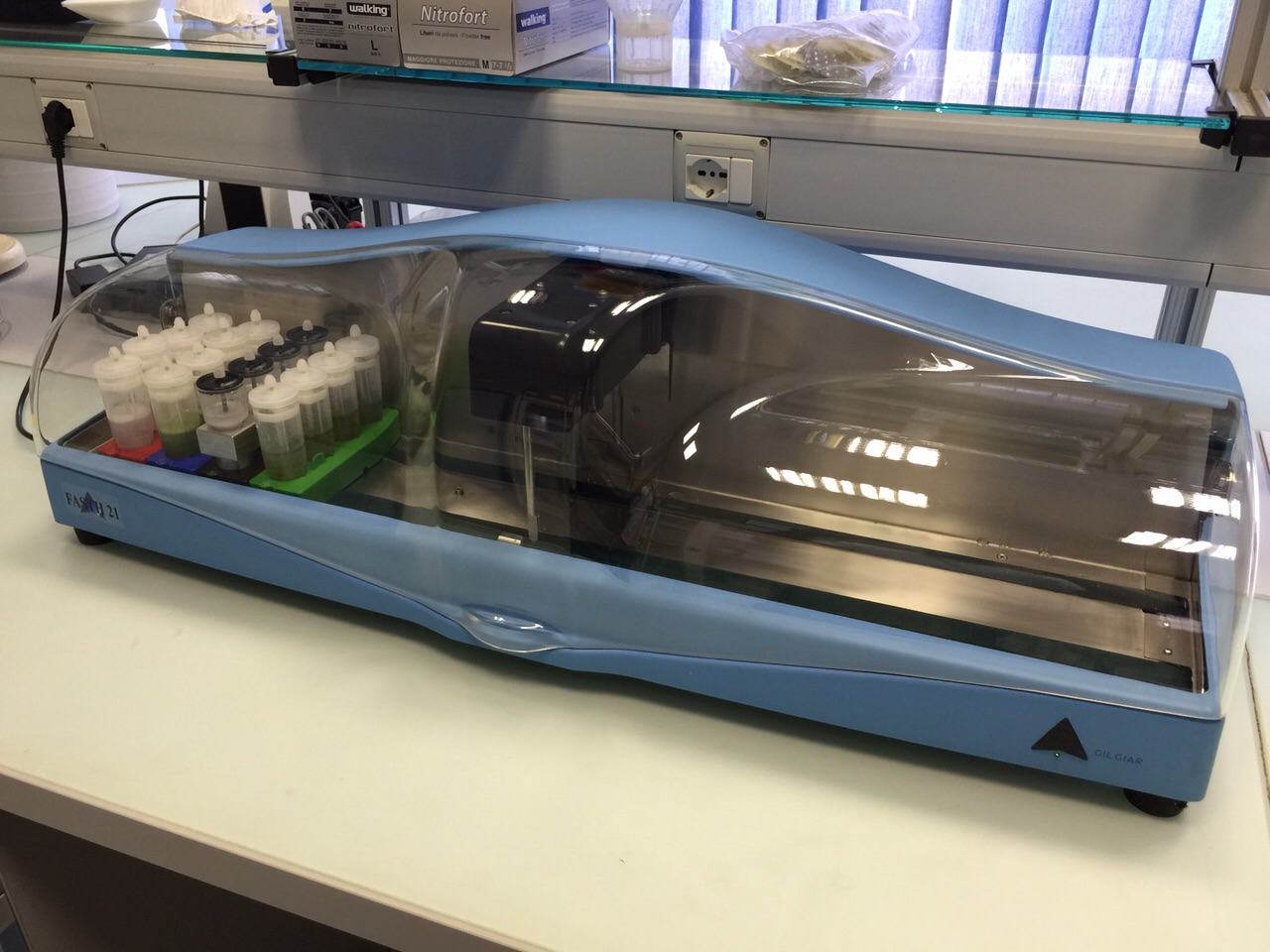

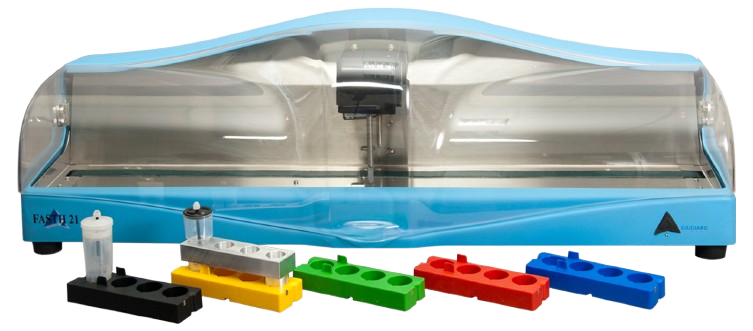

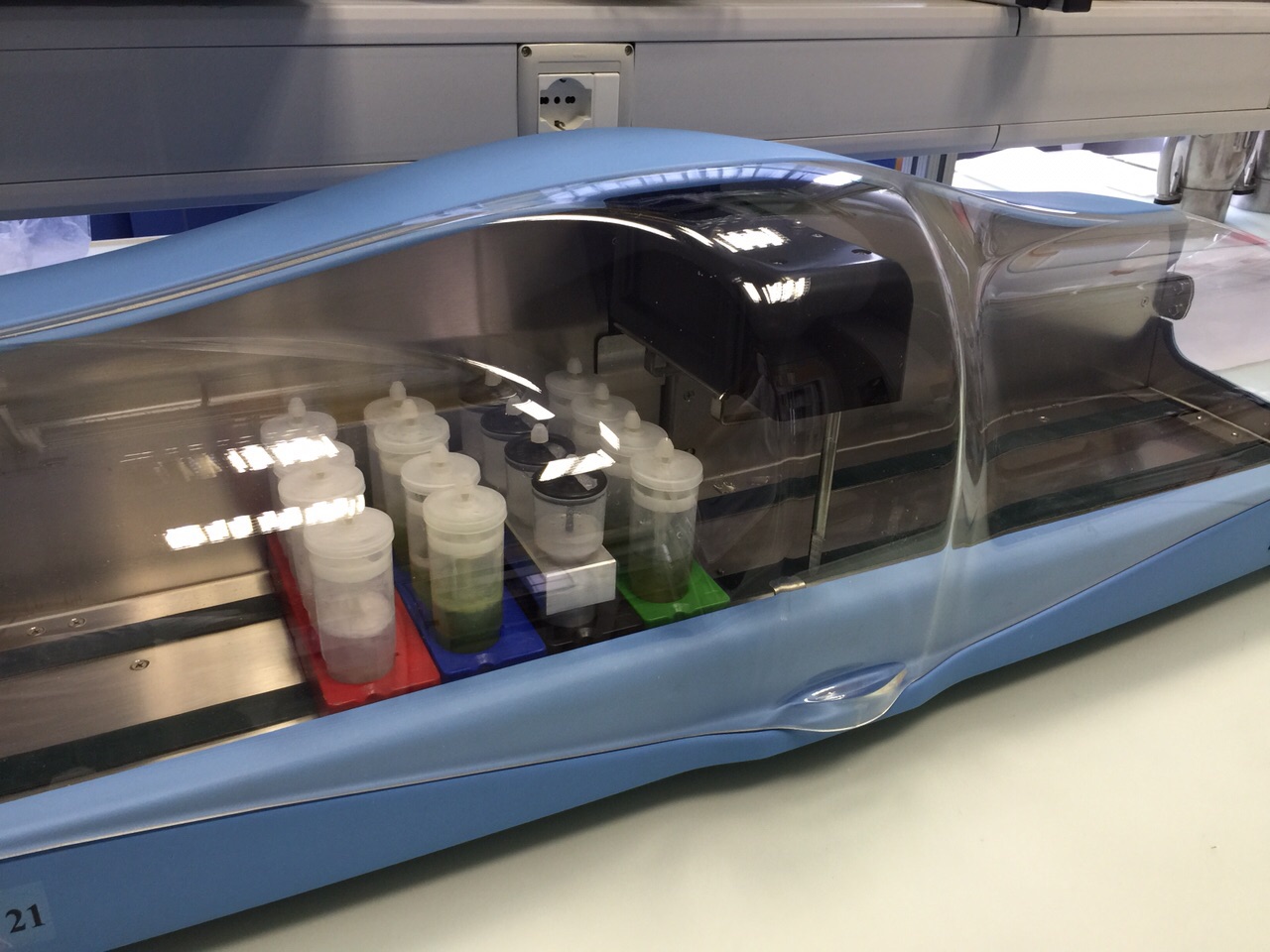

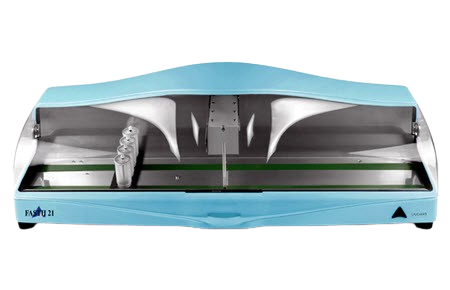

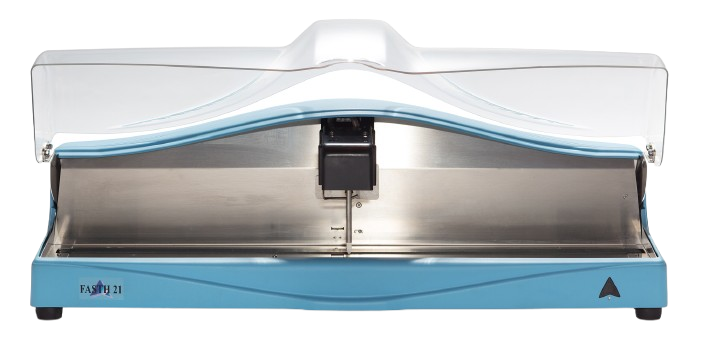

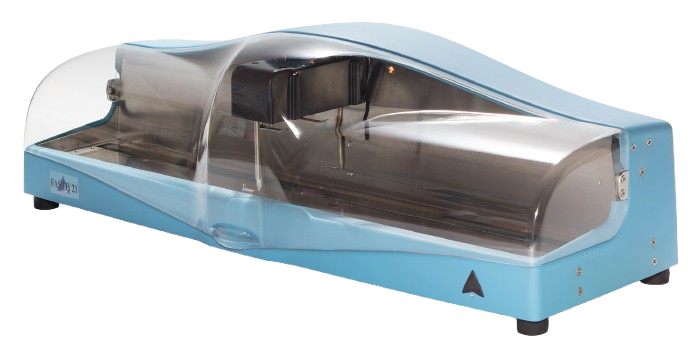

FASTH21

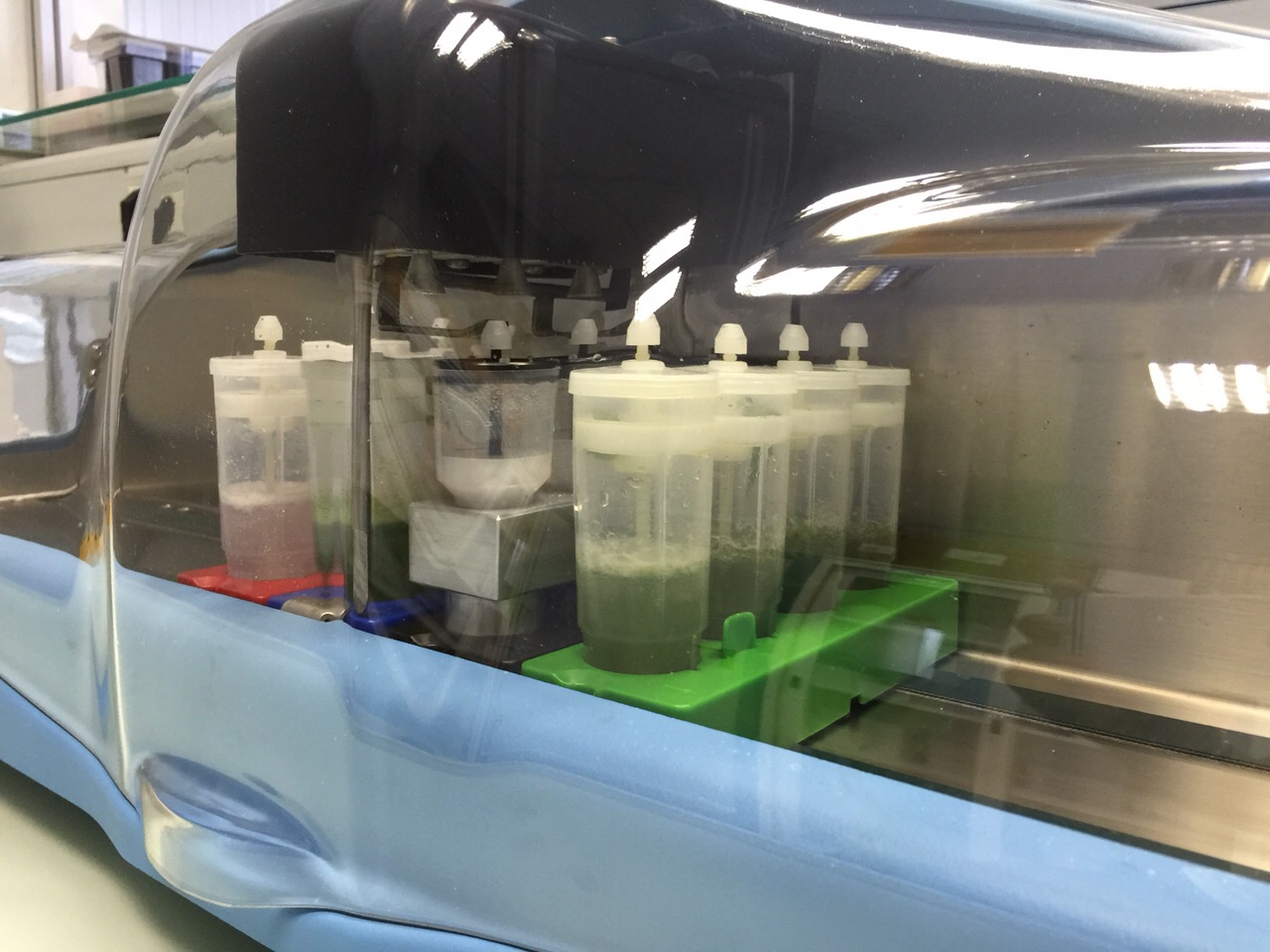

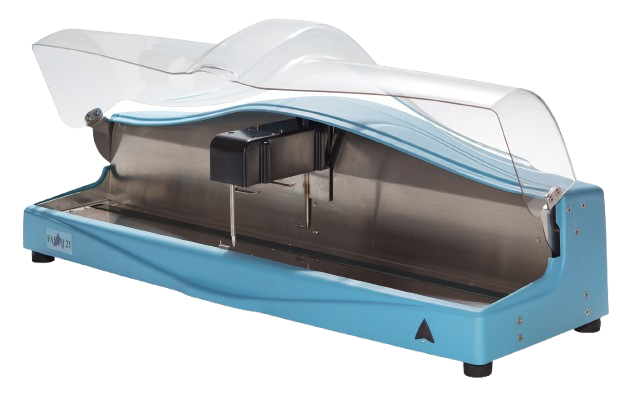

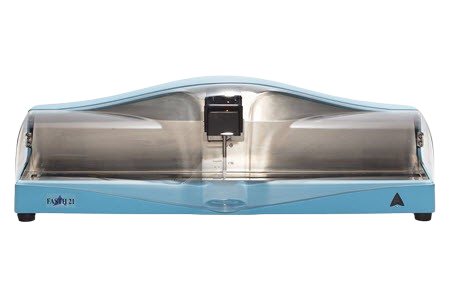

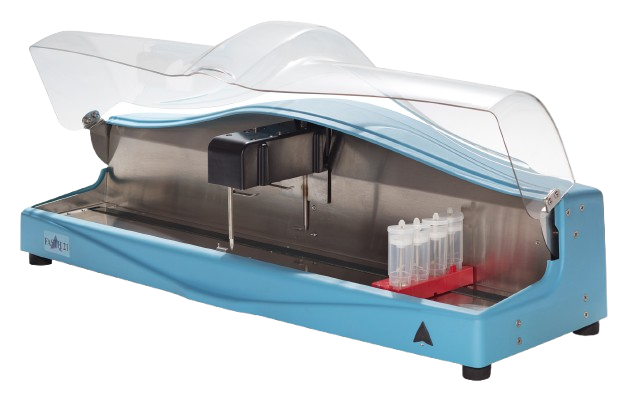

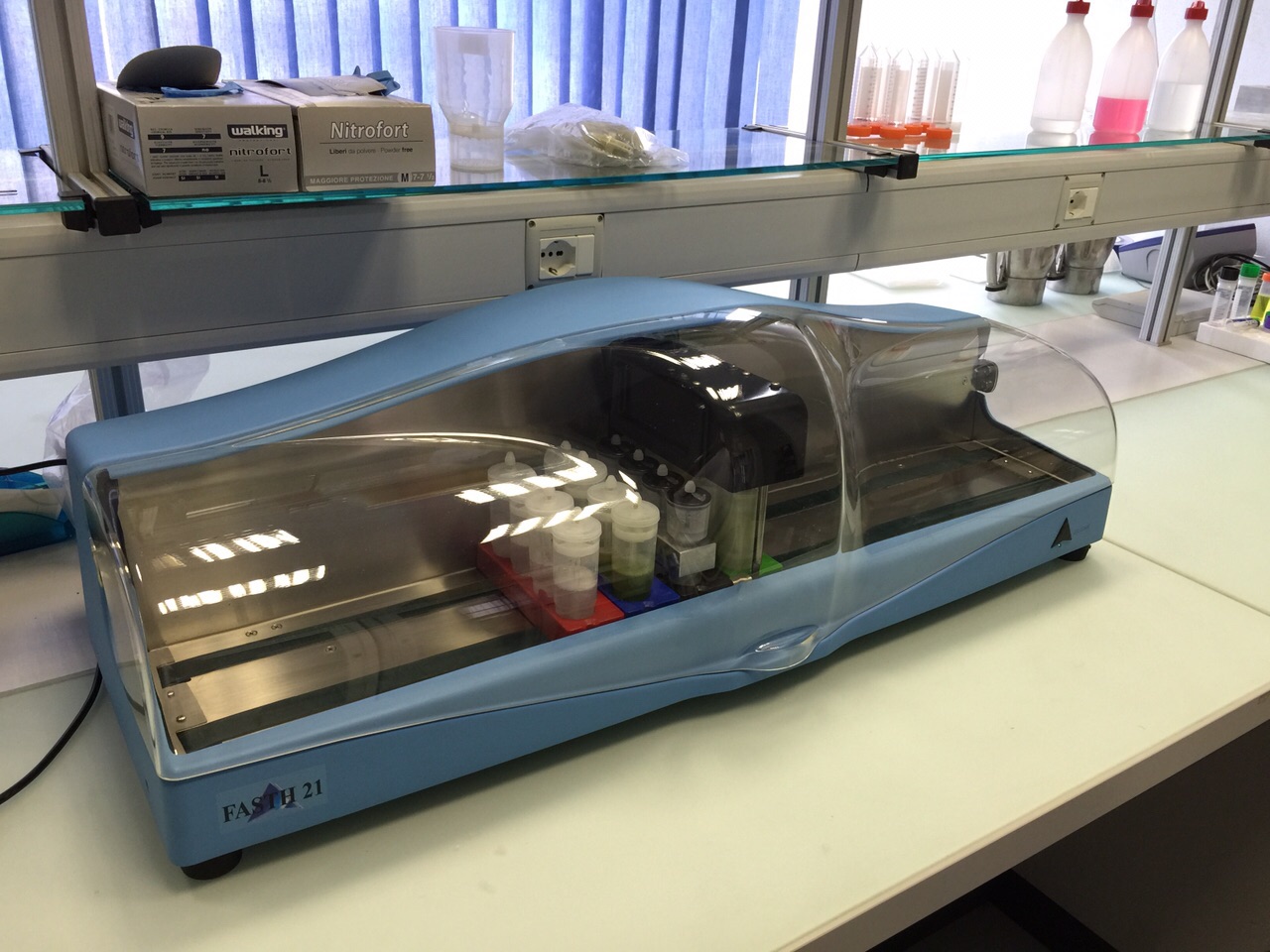

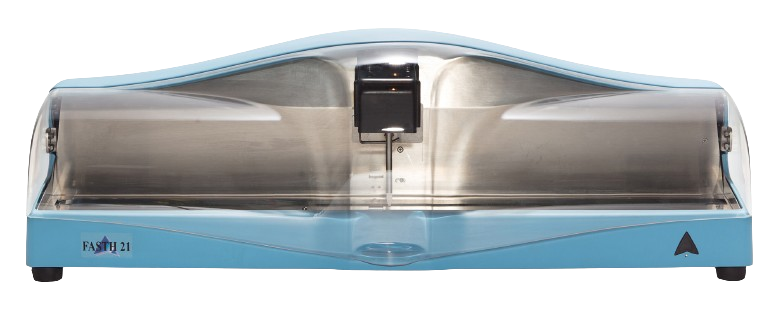

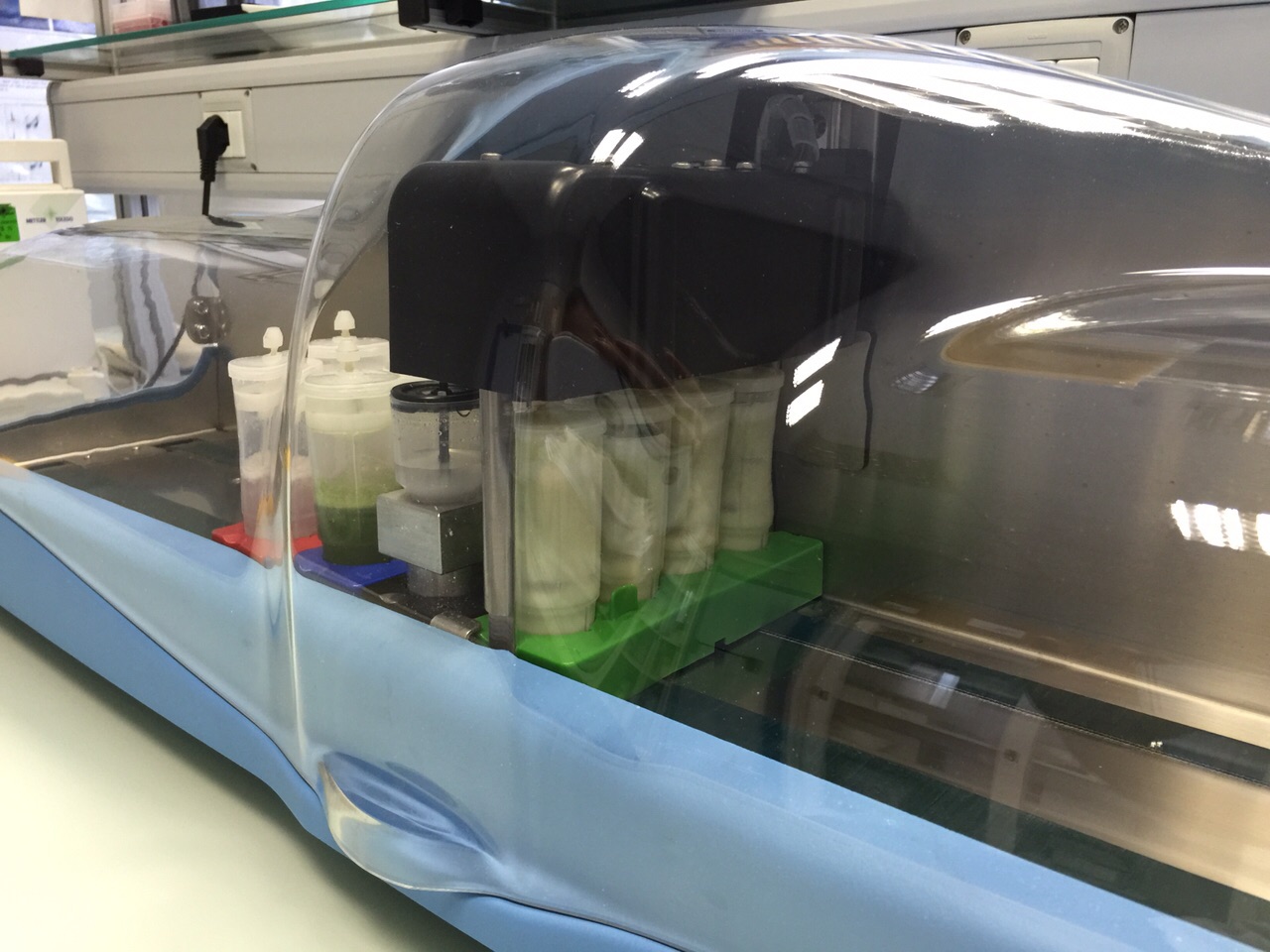

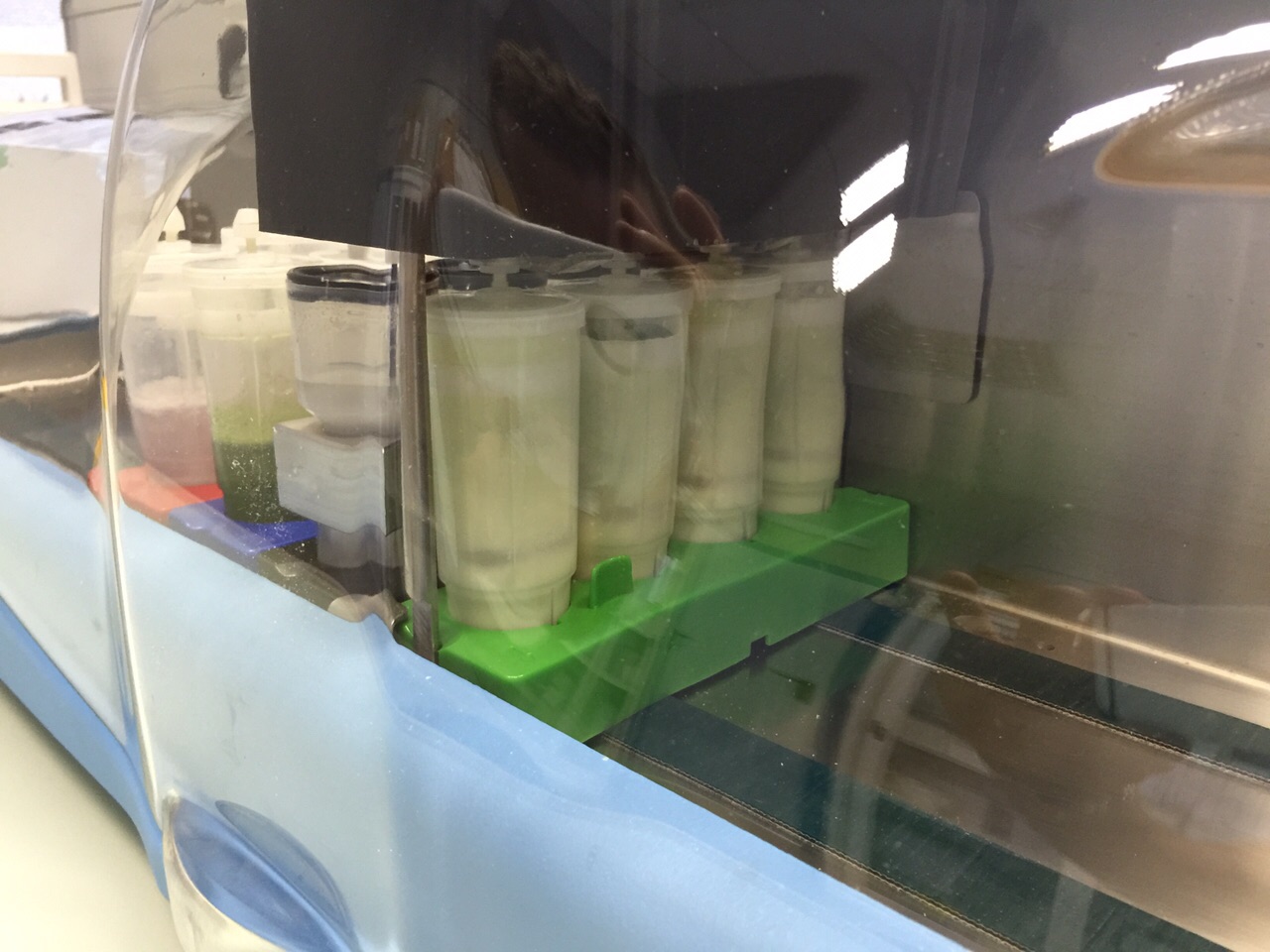

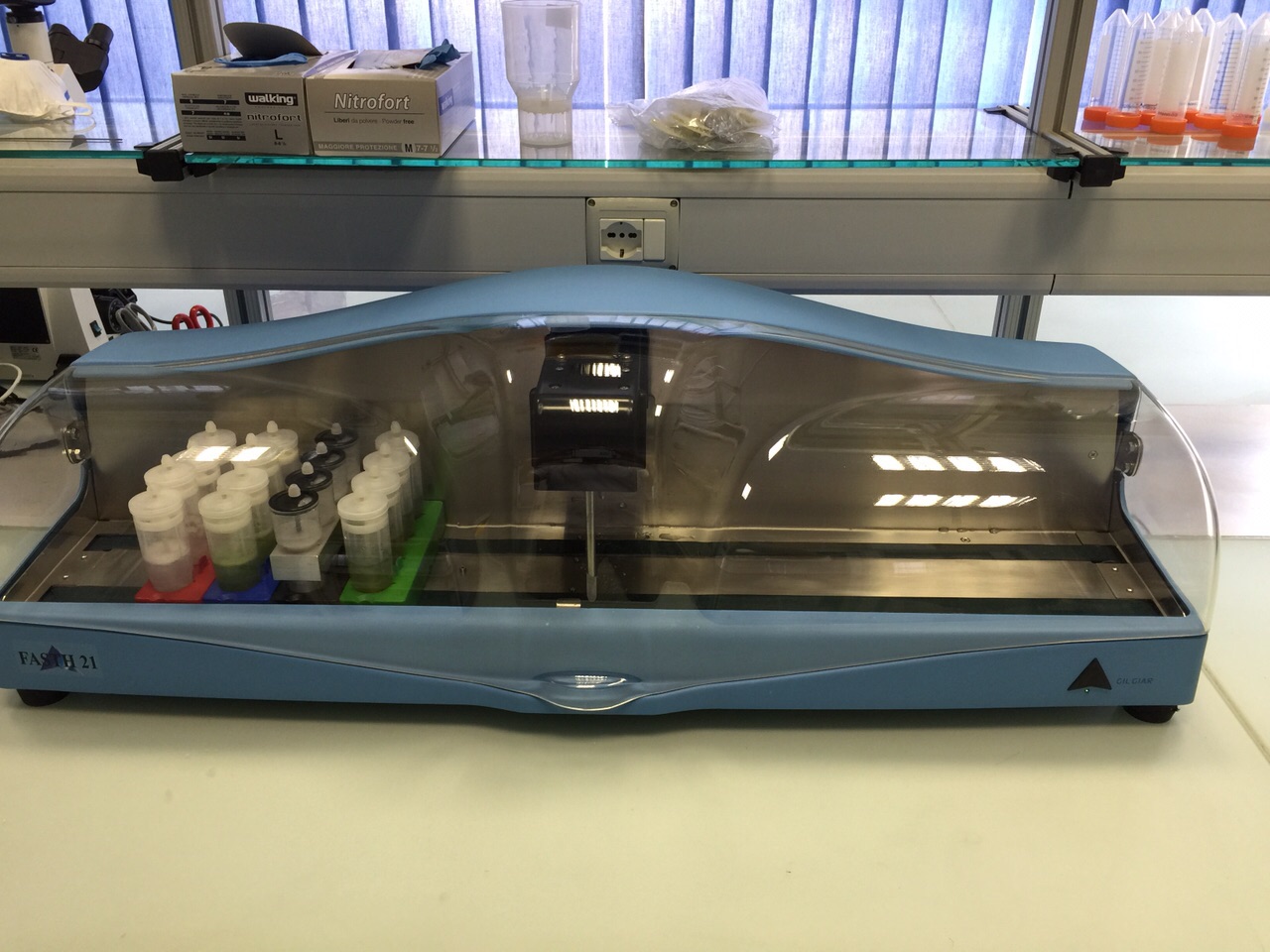

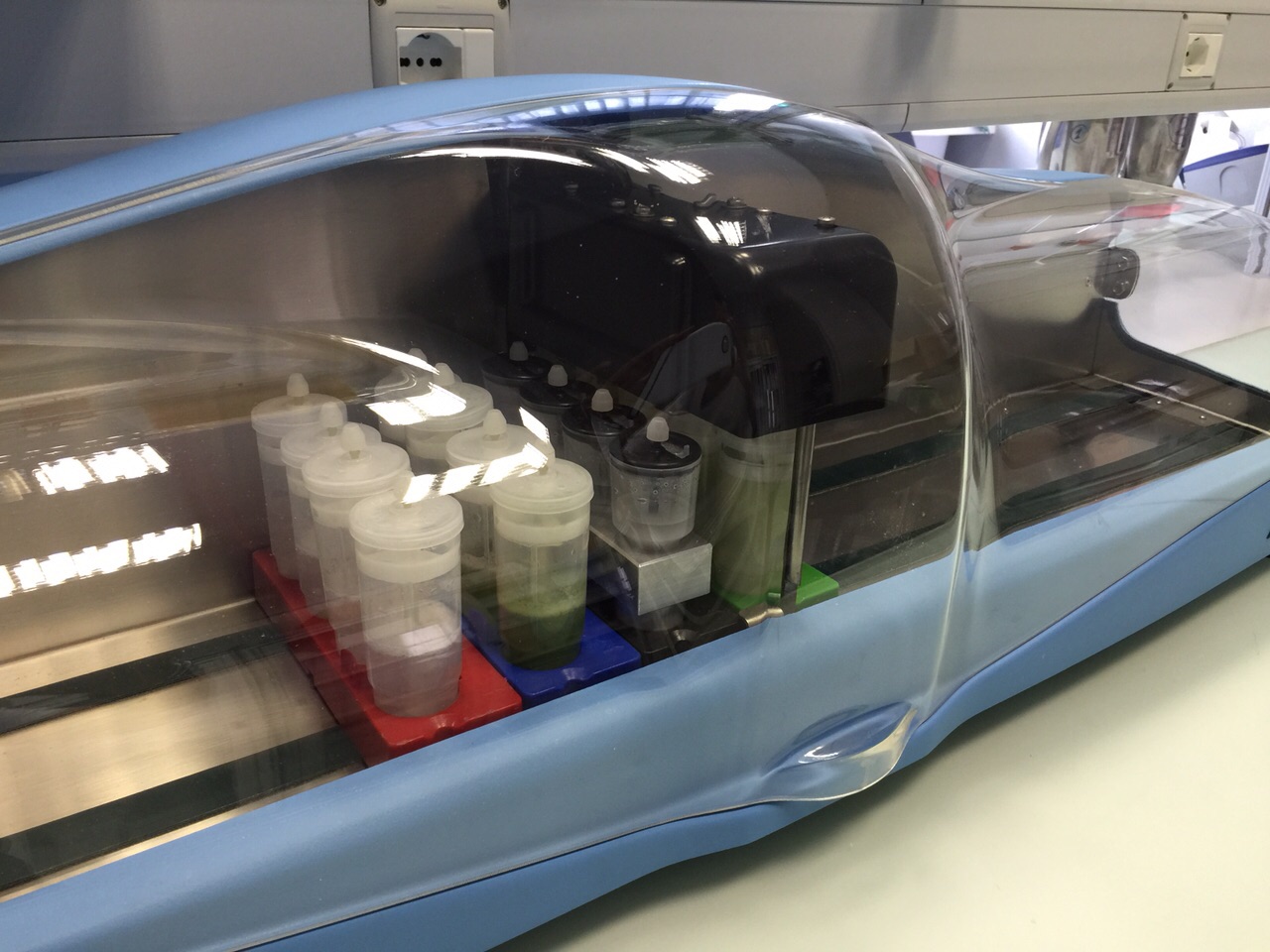

The FASTH21 instrument is a fully automated homogenisation system used in combination with FoodCon7 or PRYPcon single use consumables.

The FASTH21 system provides high quality homogenised sample preparation suitable for downstream analysis.

Typical Sample types include:
Animal / Human - a wide range of tissue types are suitable for use e.g. muscle, brain.
Food – ingredients and final product.
Feed - components and finished product
Environmental samples - e.g. soil & grass
Plant material - a wide range of crops, seed and leaf tissues can be used
Up to 28 samples can be processed in a single batch
Max throughput of 250 samples/hr
Pre-programmed protocols with max speed of up to 20,000rpm
CE Certified & UL/CSA Ready
Specifications
Code: 82041
Supply: 110/240 Vac 60/50 Hz. (automatic switch)
Absorption: 200W
Temperature: from t=+10° a t=+40°
Weight: 25 Kg.
Dimensions: cm. 105 x 34 x 30
Brochure
FASTH21 System

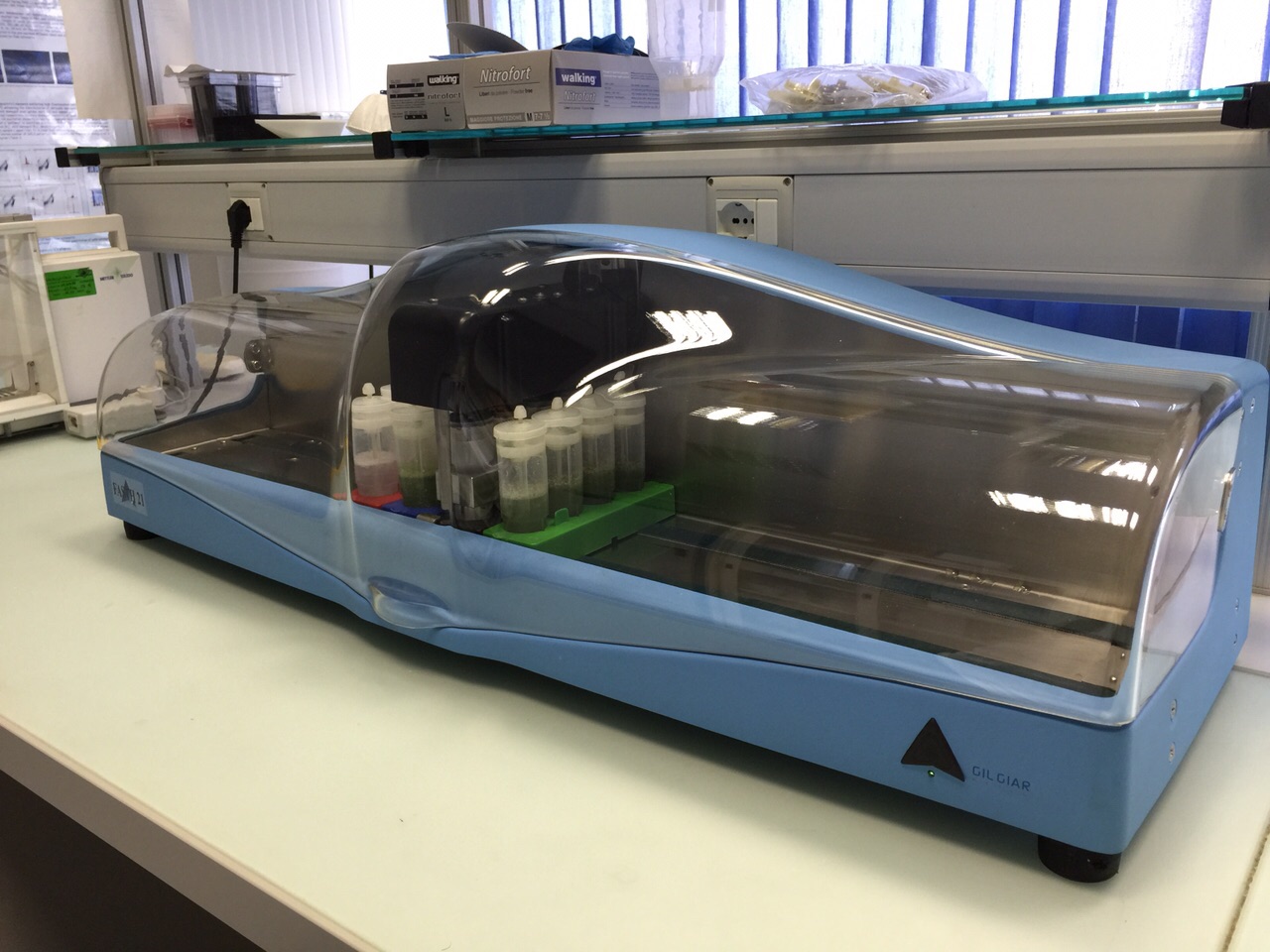

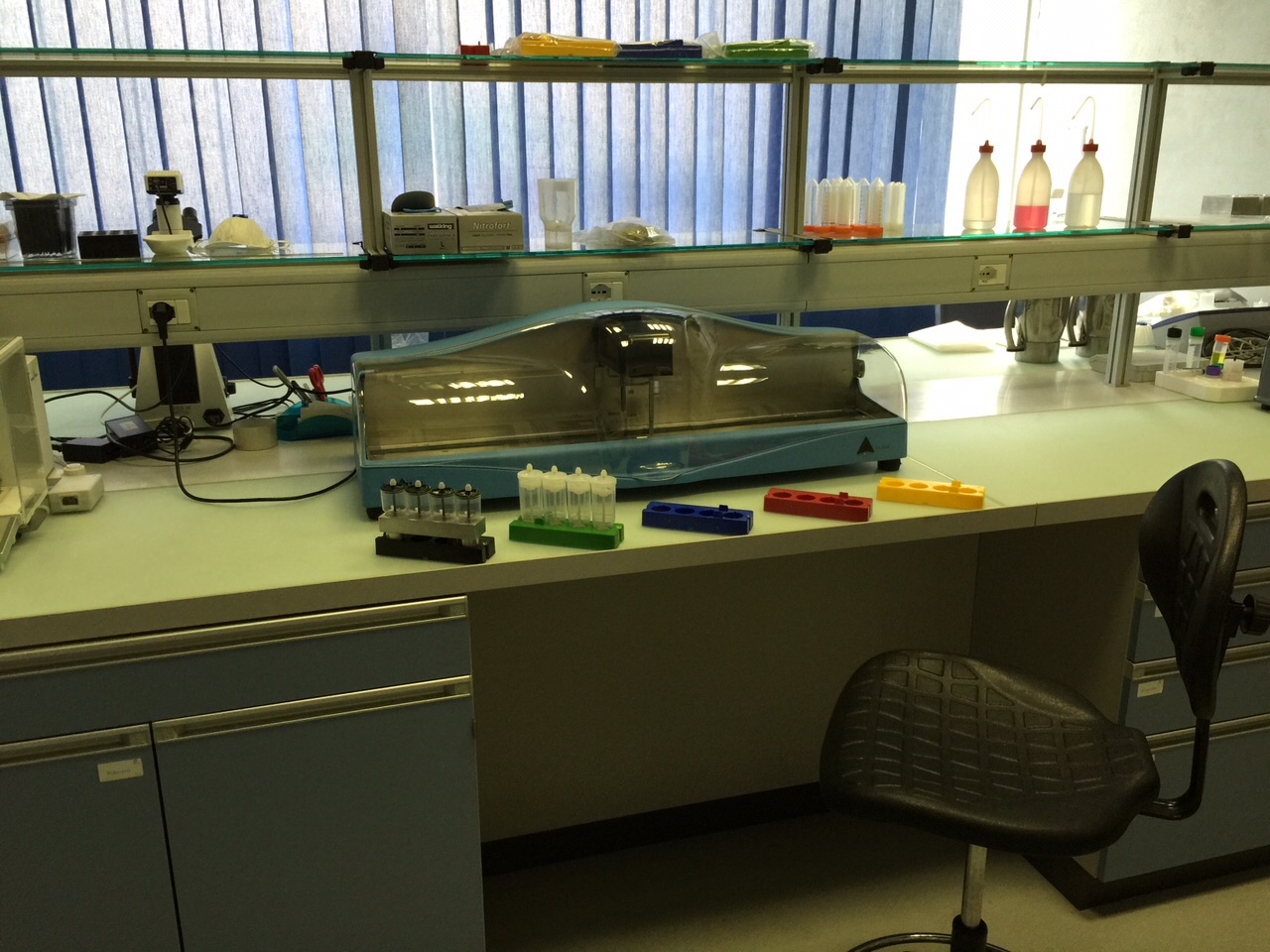

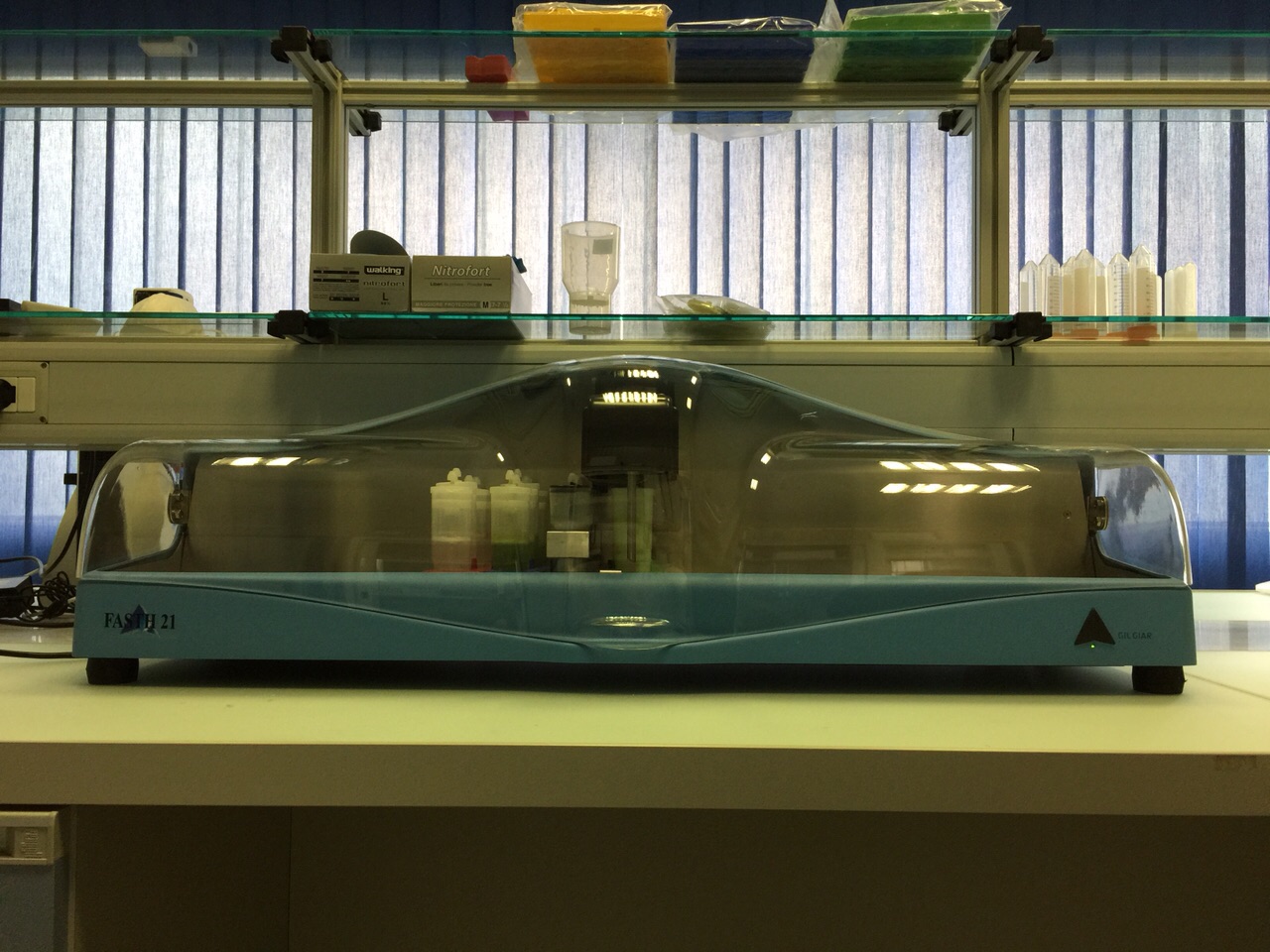

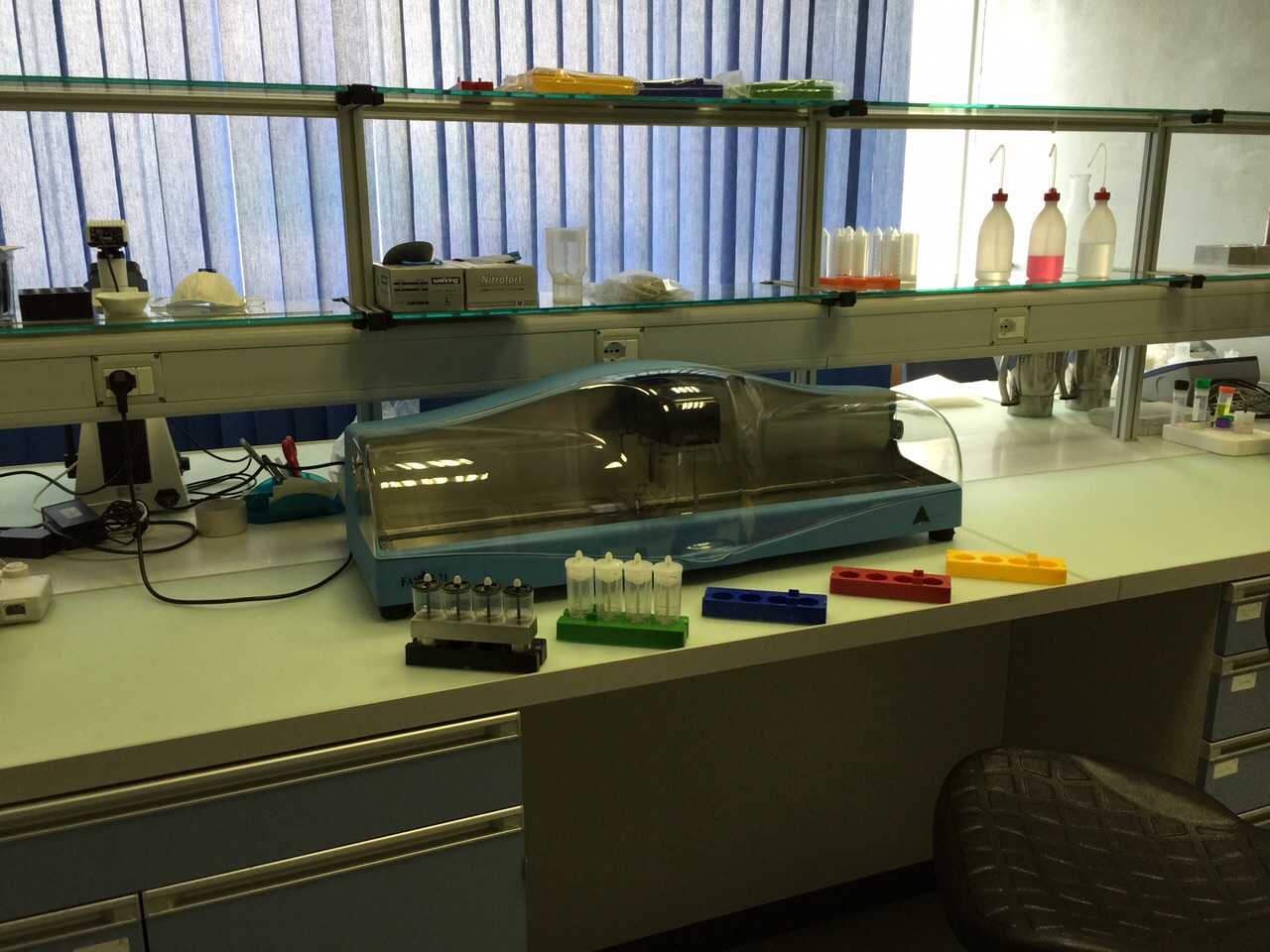

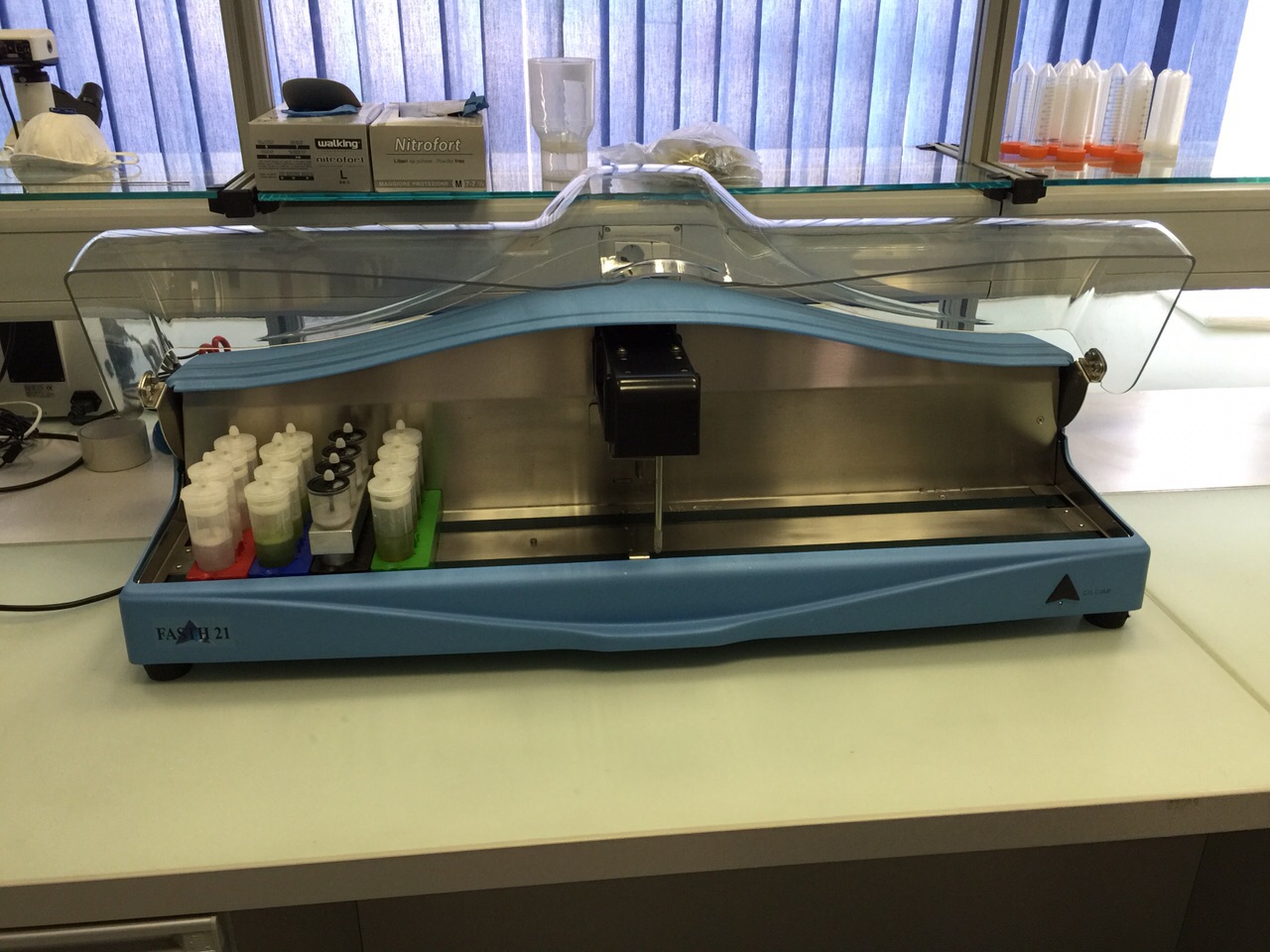

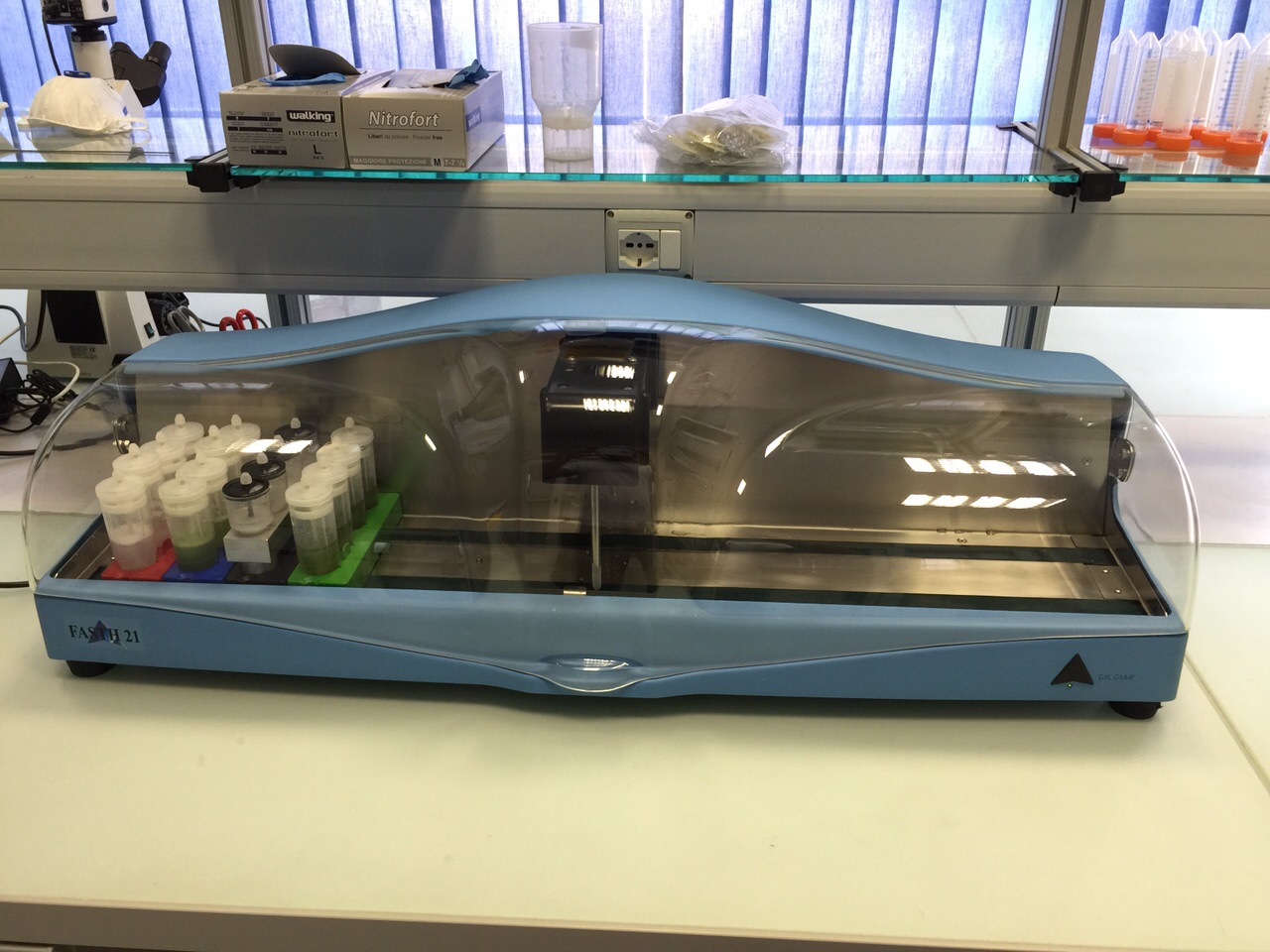

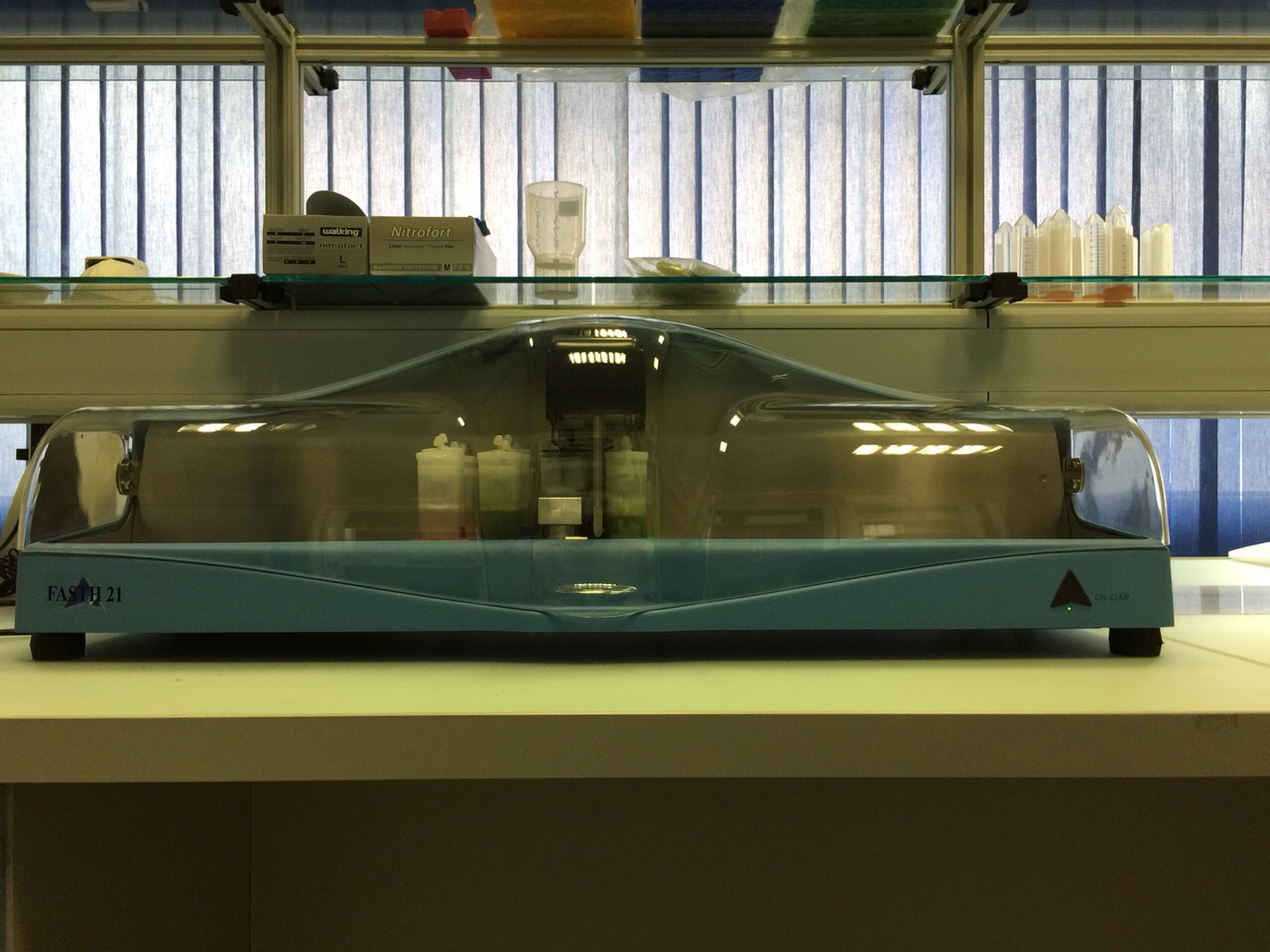

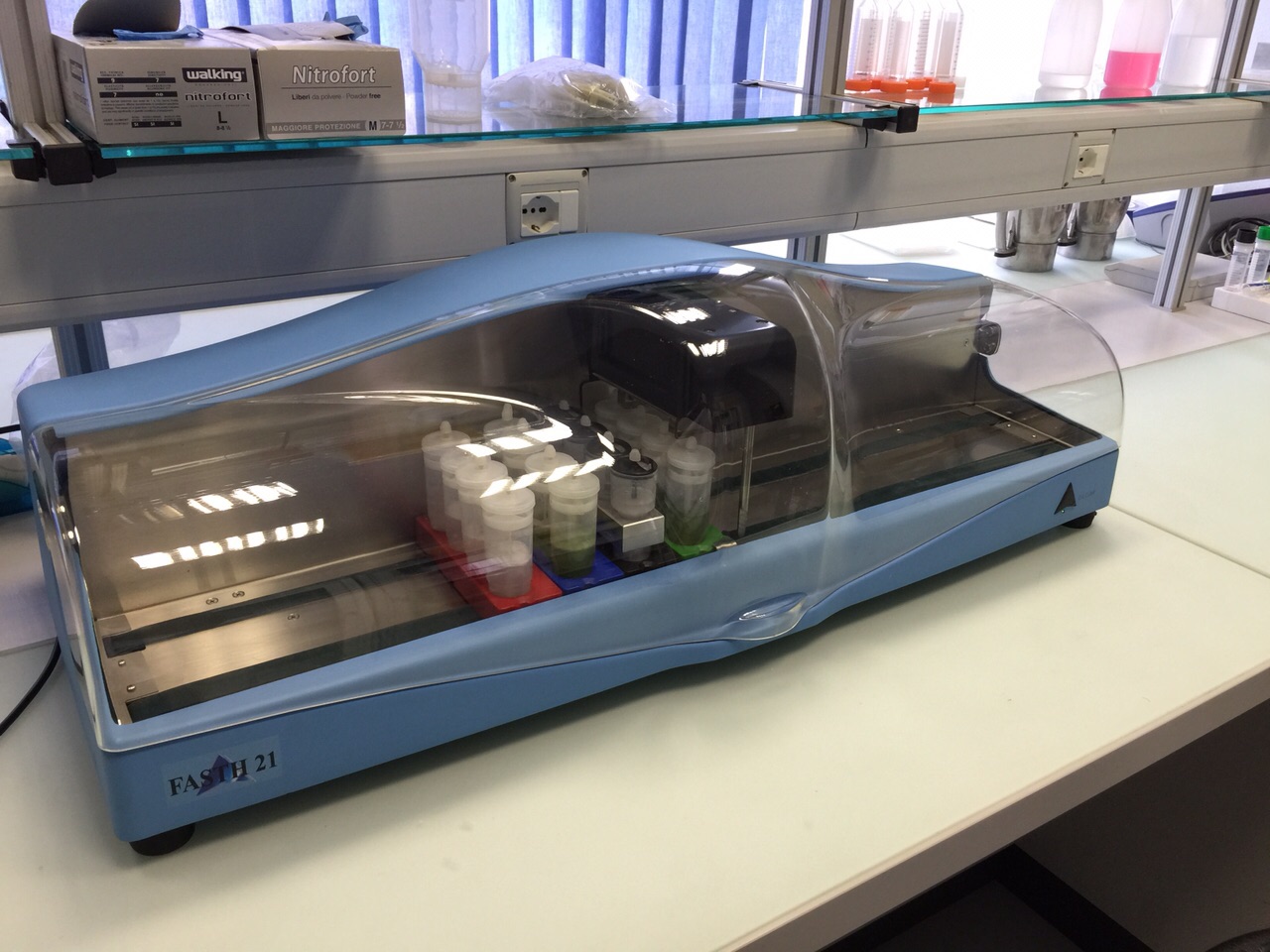

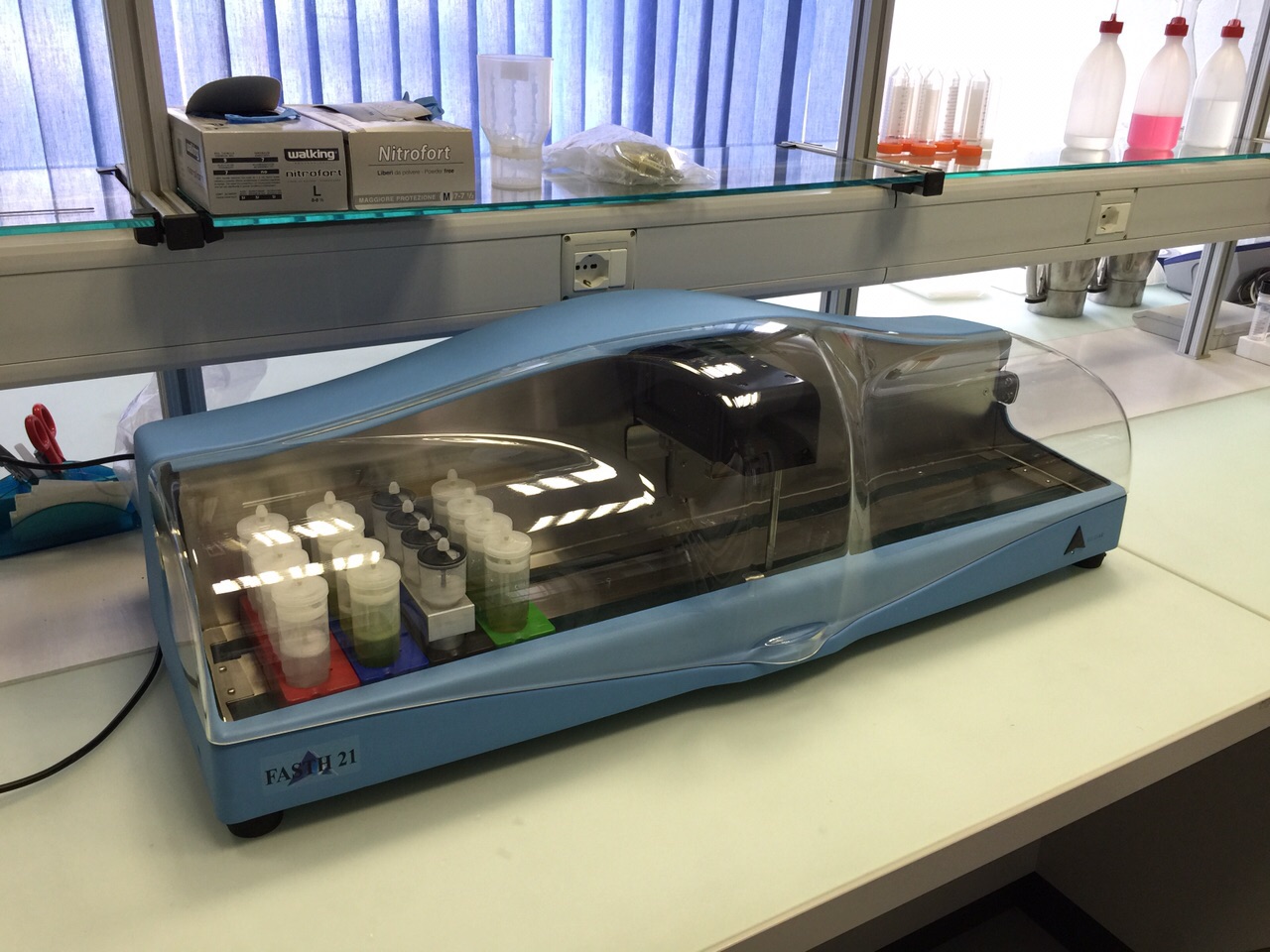

Fasth21 Gallery

Consumables

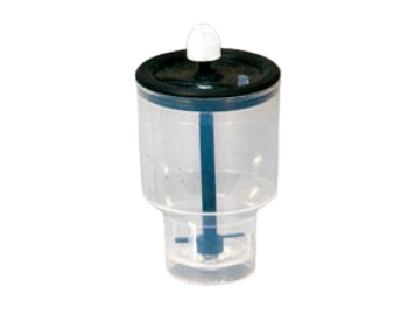

Prypcons & Prypcons-B
Prypcons
Prypcons & Prypcons-B
Single use homogenizer for soft samples up to 6 ml.

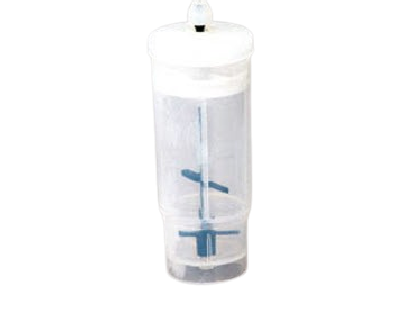

FOODcon7
FOODcon7
FOODcon7
Single use homogenizer for samples up to 25 ml.

Single use Homogenizer

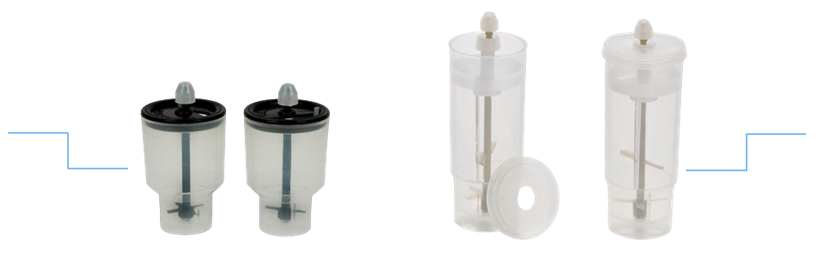

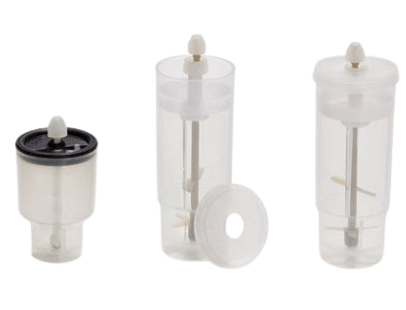

FOODcon7, PRYPCONS-B & PRYPCONS

Prypcons

Single use homogenizer for samples up to 6 ml

FOODcon7

Single use homogenizer for samples up to 25 ml

Prypcons

Single use homogenizer for samples up to 6 ml

Prypcons

FOODcon7

Single use homogenizer for samples up to 25 ml

FOODcon7

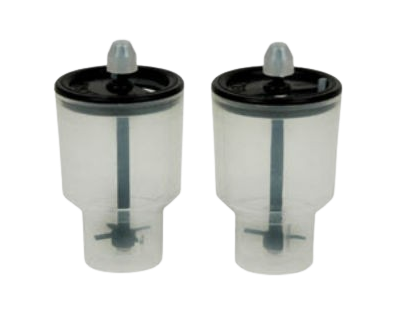

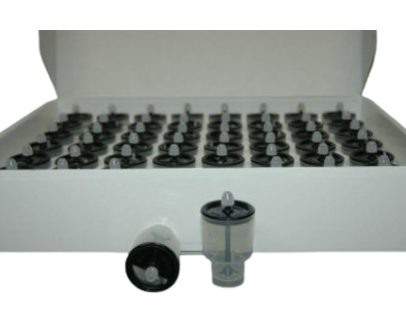

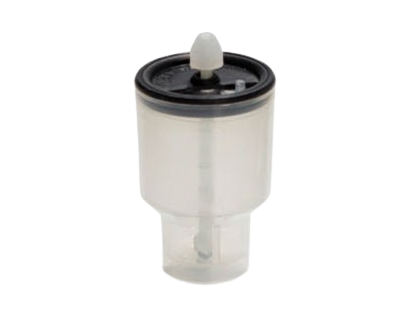

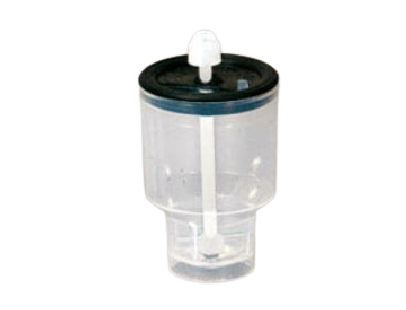

Prypcons & Prypcons-B

Prypcons

Single use homogenizer for soft samples up to 6 ml.


Prypcons-B

Single use homogenizer for samples up to 6 ml.


Single use disposable.
Minimum package: 48 units/box.
Works with FASTH21 using proper adapter (code 82030).
It works between 1 and 5 ml of total volume (sample + solvent).
Code 80300/48

Prypcons

Samples:

  • Brain, bone marrow and similar.
  • Hones, yogurt, milk and similar
  • Fresh leaves, grass, cotyledons and similar

Prypcons-B

Samples:

  • Lymph-nodes and similar.

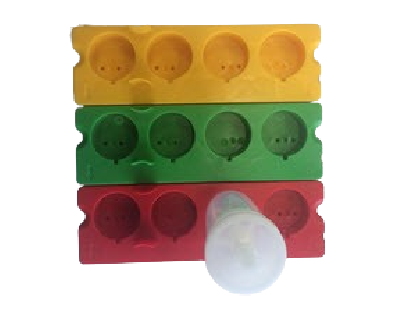

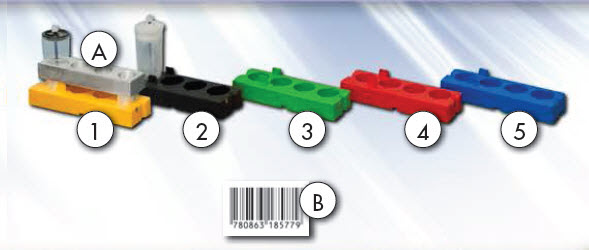

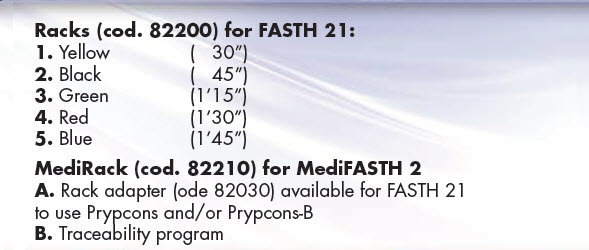

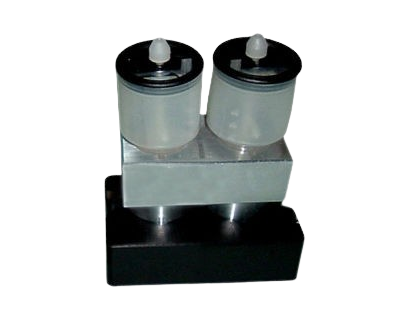

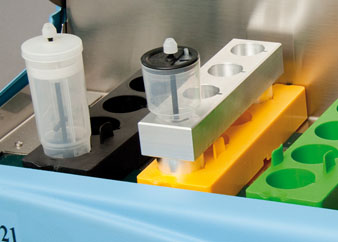

RACK adapter


Adapter tool for using Prypcons
into FASTH21 only.

Device Compatibility

FASTH21
FASTH21
FASTH21
A fully Automated Homogenizer used in combination with single use consumables.
Medimachine II
Medimachine II
Medimachine II
A benchtop instrument for the automated dissociation of tissues to obtain single-cell suspensions.

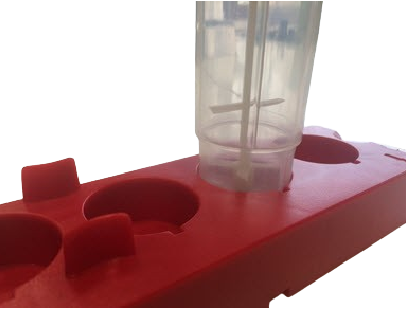

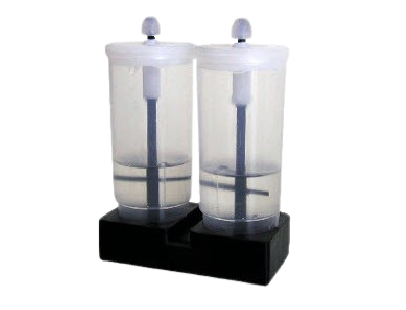

FOODcon7

Single use homogenizer for samples up to 25 ml.

Single use disposable.
Minimum package: 50 units/box.
Works with FASTH21 or MediFASTH 2.
It works between 6 and 25 ml of total volume (sample + solvent).
Code 82300/50

Samples:

  • brain, bone marrow and similar.
  • Hones, yogurt, milk and similar.
  • Fresh leaves, grass, cotyledons and similar.

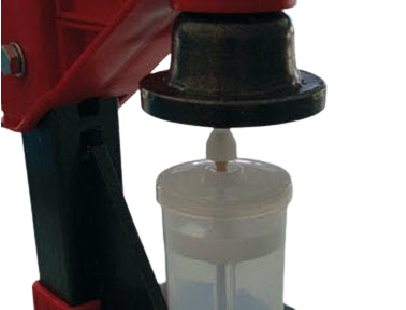

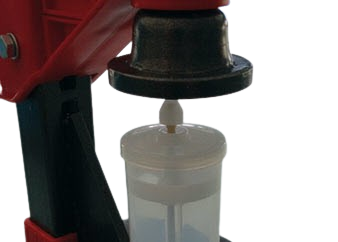

FOODcon7 Sealing Tool.

FOODcon7 Sealing tool (crimper): it is a useful mechanic tool to close FOODcon7 lids sealing them in a standard and secure way.

Easy to use.

Dimensions: 340 x 170 mm h 370 mm

Weight: 5 Kg.

Code: 8230CS

Device Compatibility

FASTH21
FASTH21
FASTH21
A fully Automated Homogenizer used in combination with single use consumables.
Medimachine II
Medimachine II
Medimachine II
A benchtop instrument for the automated dissociation of tissues to obtain single-cell suspensions.
